| Material | High Carbon Steel |
| Type of Product | Self-Aligning Ball Bearings Cylindrical Hole 2300 Series |
| Model No | 2306 |
| Mass (g) | 480 |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearings Cylindrical Hole 2300 Series |
Model No |
2306 |
Mass (g) |
480 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Double row |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |

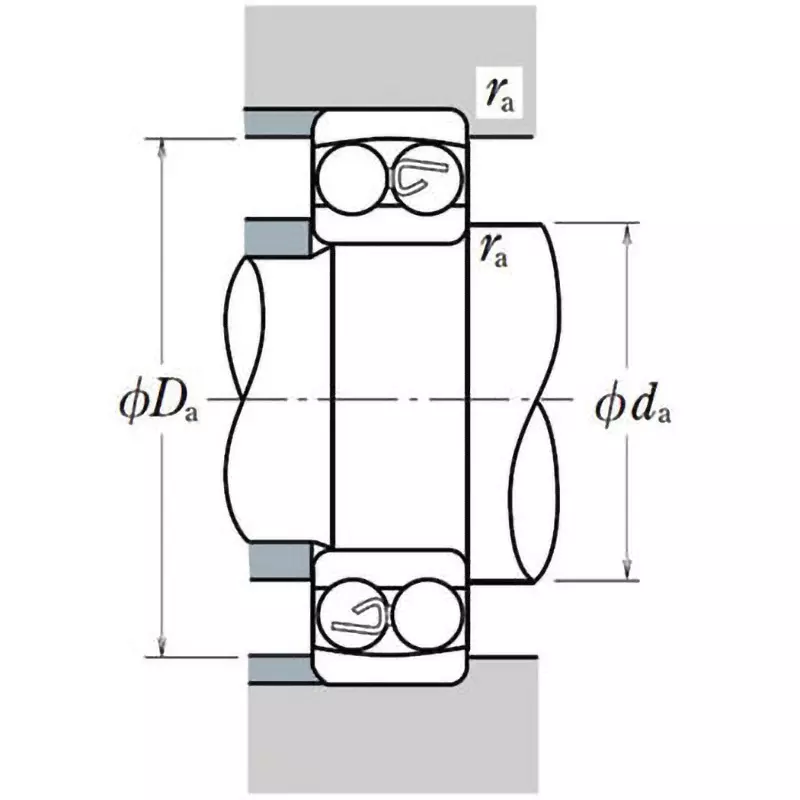

Mounting Dimension, Maximum ra (mm) |
1 |
Mounting Dimension, Maximum Da (Φmm) |
65.5 |
Mounting Dimension, Minimum da (mm) |
36.5 |
Basic load rating Cr (N) |
32000 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Width B (mm) |
27 |
Monotaro ID |
7022644 |
Basic load rating Cor (N) |
8750 |
Outer Diameter D (Φmm) |
72 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Chamfer Dimension r (mm) |
1.1 (minimum) |
Inner Diameter (mm) |
30 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
8000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
10000 |
