| Material | High Carbon Steel |

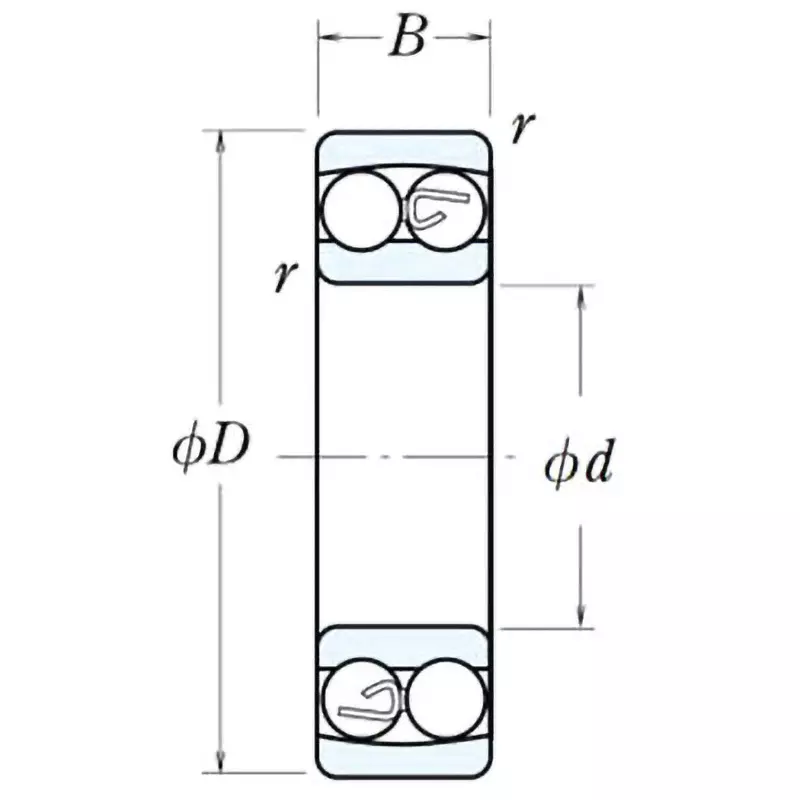

| Type of Product | Self-Aligning Ball Bearings Type 2200 |
| Model No | 2202C3 |
| Mass (g) | 55 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearings Type 2200 |
Model No |
2202C3 |
Mass (g) |
55 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Double row |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |
Basic load rating Cr (N) |
7800 |
JIS grade |
0 |
Width B (mm) |
14 |
Monotaro ID |
38375802 |
Basic load rating Cor (N) |
1850 |
Type |
Cylindrical hole |
Outer Diameter D (Φmm) |
35 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
15 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
18000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
22000 |
Nominal No. |
2202 |
Symbol of Internal Clearance Preload |
C3 |
Dimension R |
(Minimum) 0.6 mm |
