| Material | High Carbon Steel |
| Type of Product | Self-Aligning Ball Bearings 1300 Series |
| Model No | 1300S |
| Load direction | Radial |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearings 1300 Series |
Model No |
1300S |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |

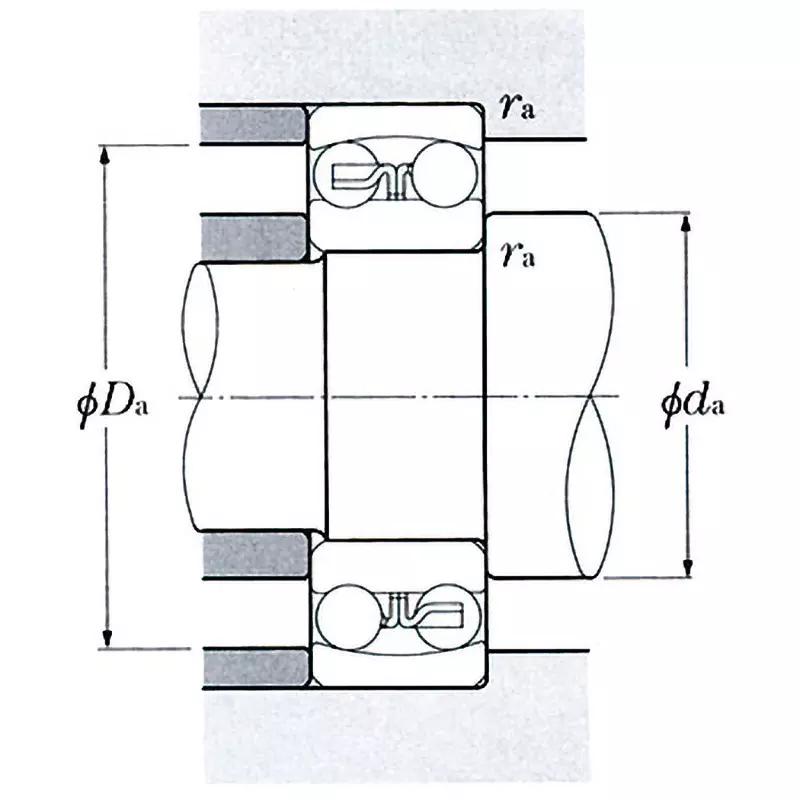

Mounting Dimension, Maximum Da (Φmm) |
31 |
Mounting Dimension, Minimum da (mm) |
14 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |

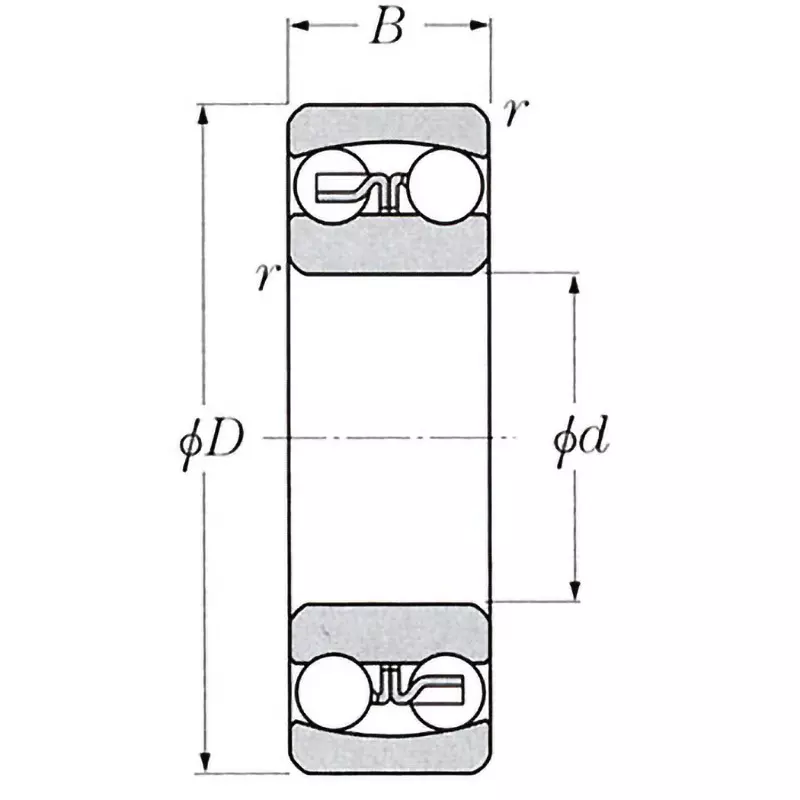

Width B (mm) |
11 |
Monotaro ID |
343226 |
Mounting Dimension, Maximum ras (mm) |
0.6 |
Shaft Hole Type |
Cylindrical hole type |
Outer Diameter D (Φmm) |
35 |
Reference mass (g) |
59 |
Basic static load rating Cor (N) |
1620 |
Basic dynamic load rating Cr (N) |
7350 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Chamfer Dimension r (mm) |
0.6 |
Inner Diameter (mm) |
10 |
Permissible Speed (min-1) Grease Lubrication |
20000 |
