| Material | High Carbon Steel |
| Type of Product | Self-Aligning Ball Bearings 1300 Series Tapered Hole |
| Model No | 1305SK |
| Load direction | Radial |
Material |
High Carbon Steel |
Type of Product |
Self-Aligning Ball Bearings 1300 Series Tapered Hole |
Model No |
1305SK |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Self-Aligning Ball Bearings |

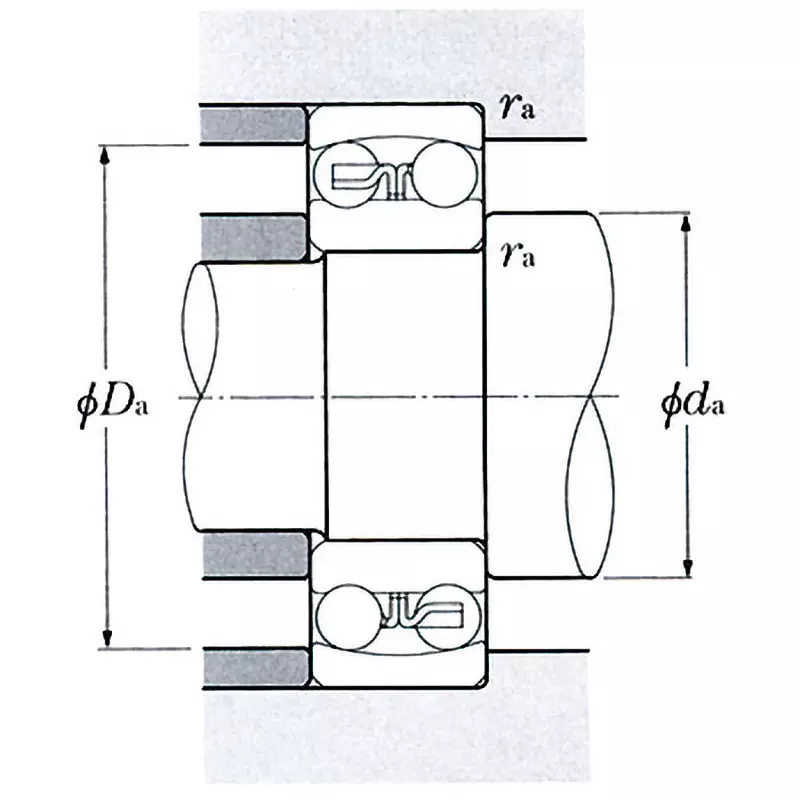

Mounting Dimension, Maximum Da (Φmm) |
55.5 |
Mounting Dimension, Minimum da (mm) |
31.5 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Width B (mm) |
17 |
Monotaro ID |
343296 |
Mounting Dimension, Maximum ras (mm) |
1 |
Shaft Hole Type |
Tapered hole type |
Outer Diameter D (Φmm) |
62 |
Reference mass (g) |
261 |
Basic static load rating Cor (N) |
5000 |
Basic dynamic load rating Cr (N) |
18200 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Chamfer Dimension r (mm) |
1.1000000000000001 |

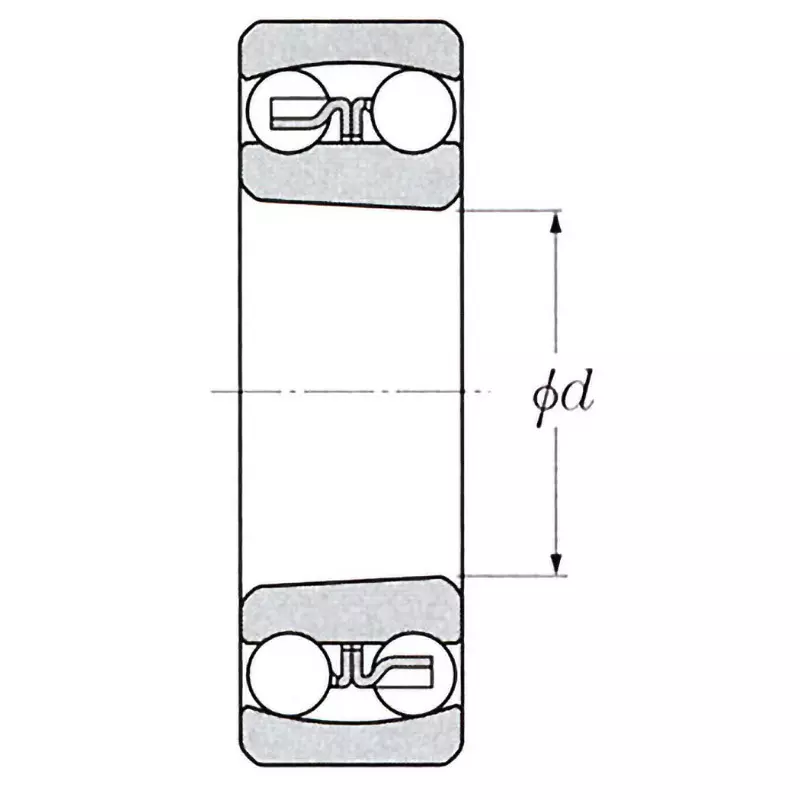

Inner Diameter (mm) |
25 |
Permissible Speed (min-1) Grease Lubrication |
10000 |
