| Type of Product | Ac/Dc Current Sensor |

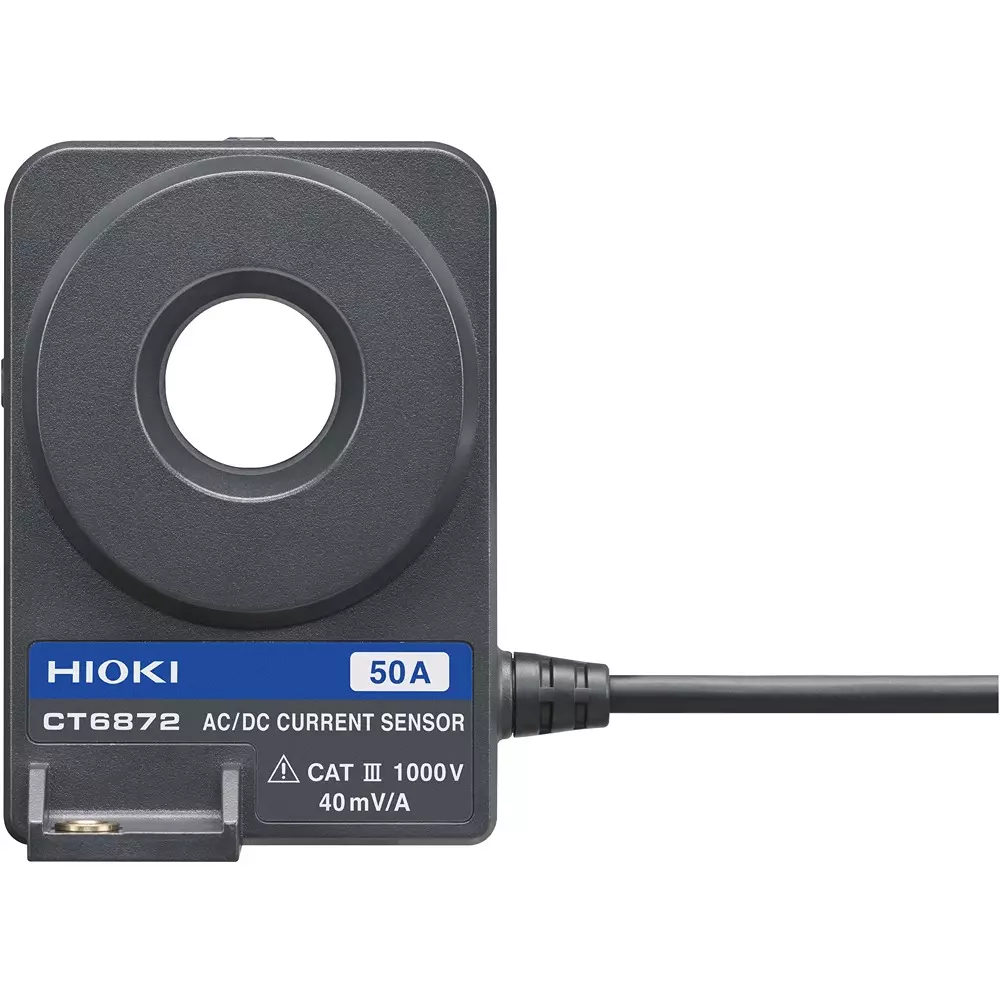

| Model No | CT6872 |
| Power Supply | Power is supplied via power analyzers PW8001, PW6001, PW3390, sensor units CT9555, CT9556, CT9557, and 3-channel current unit U8977. |
| Output Voltage | Rate: 40mV/A *The output of this device is AC+DC voltage output via the sensor unit. |
Type of Product |
Ac/Dc Current Sensor |
Model No |
CT6872 |
Power Supply |
Power is supplied via power analyzers PW8001, PW6001, PW3390, sensor units CT9555, CT9556, CT9557, and 3-channel current unit U8977. |
Output Voltage |
Rate: 40mV/A *The output of this device is AC+DC voltage output via the sensor unit. |
Mass (g) |
370 |
Monotaro ID |
52126000 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual x1, Mark band x6, Precautions for use x1 |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Linearity |
±2 ppm Typical (23℃) |
Cable Length (m) |
3 |
Specifications |
Maximum input current: Within derating range, up to ±150Apeak (design value, below 40℃ and within 20ms) |
Maximum Rated Voltage |
Ground-to-ground: 1000 V CAT III |
Frequency Characteristic |
Amplitude: DC to 10MHz, Phase: DC to 1MHz |
Basic Accuracy |
DC (±0.03%rdg, ±0.002%fs, no phase specification), 45Hz ≤ f ≤ 66Hz (±0.03%rdg, ±0.007%fs, ±0.05°), specified up to 1MHz. |
Dimension (WxDxH) |
70x100x53 mm |
Operating Temperature / Humidity Range |
-40 to 85°C, 80% RH or less (non-condensing) |
Rated Power (VA) |
Maximum: 4 or less (50A/55Hz measurement, at ±12V power supply) |
Measurable conductor diameter (Φmm) |
24 or less |
Rated Current (A) |
AC/DC 50 |
Offset |
Voltage: ±5 PPM Typical (23℃, no input) |
