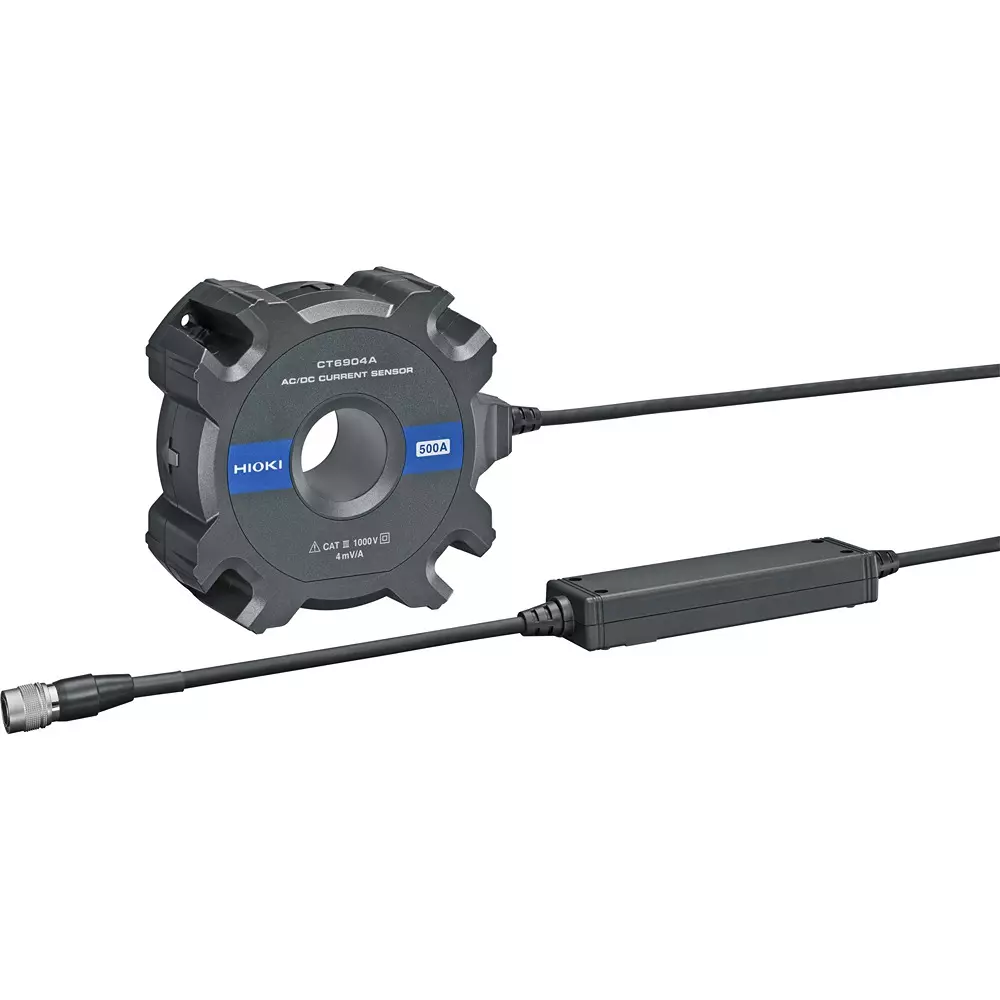

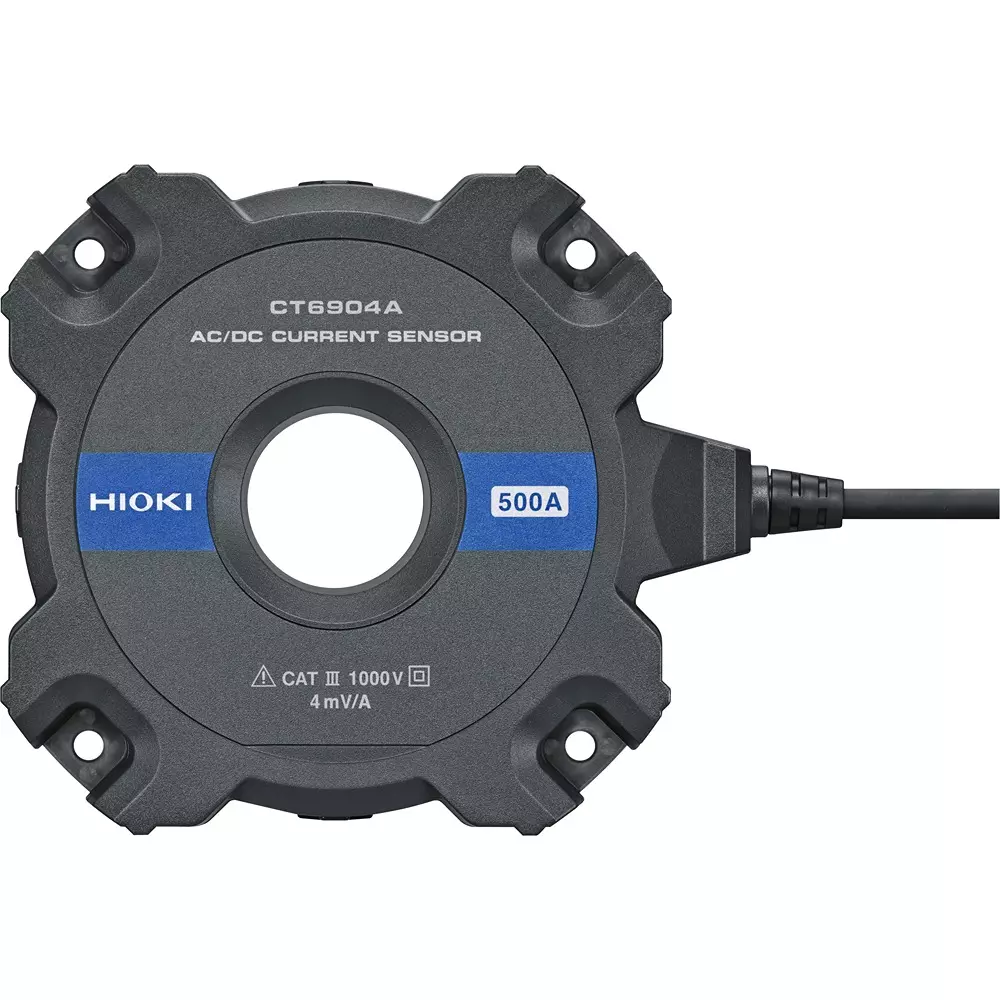

| Type of Product | Ac/Dc Current Sensor |
| Model No | CT6904A |
| Power Supply | Supplied via power analyzer PW8001, PW6001, PW3390 or sensor unit CT9555, CT9556, CT9557 |
| Output Voltage | Rate: 4 mV/A *The output of this device is AC+DC voltage output via the sensor unit. |
Type of Product |
Ac/Dc Current Sensor |
Model No |
CT6904A |
Power Supply |
Supplied via power analyzer PW8001, PW6001, PW3390 or sensor unit CT9555, CT9556, CT9557 |
Output Voltage |
Rate: 4 mV/A *The output of this device is AC+DC voltage output via the sensor unit. |
Size |
139 W x 120 H x 52 D mm |
Monotaro ID |
52126036 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual x1, Carrying case x1, Color label (for channel identification) x1, Precautions for use x1 |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Linearity |
±5ppm Typical (23℃) |
Cable Length (m) |
3 |
Mass (Kg) |
1.05 |
Specifications |
Maximum input current: Within derating range, up to ±1000Apeak (design value, below 40℃ and within 20ms) |
Maximum Rated Voltage |
Ground to ground: 1000 V CAT III |
Basic Accuracy |
DC (±0.025%rdg.±0.007%fs, no phase specification), 45Hz≦f≦65Hz (±0.02%rdg.±0.007%fs, ±0.08°), specified up to 1MHz |
Operating Temperature / Humidity Range |
-10℃ to +50℃, 80% rh or less (no condensation) |
Rated Power (VA) |
Maximum: 7 or less (500 A/55 Hz measurement, with ±12 V power supply) |
Measurable conductor diameter (Φmm) |
32 or less |
Rated Current (A) |
AC/DC 500 |
Offset |
Voltage: ±10 PPM Typical (23℃, no input) |
Frequency Band (MHz) |
Amplitude: DC to 4 (CT6904A-1: 2MHz), Phase: DC to 1 |
