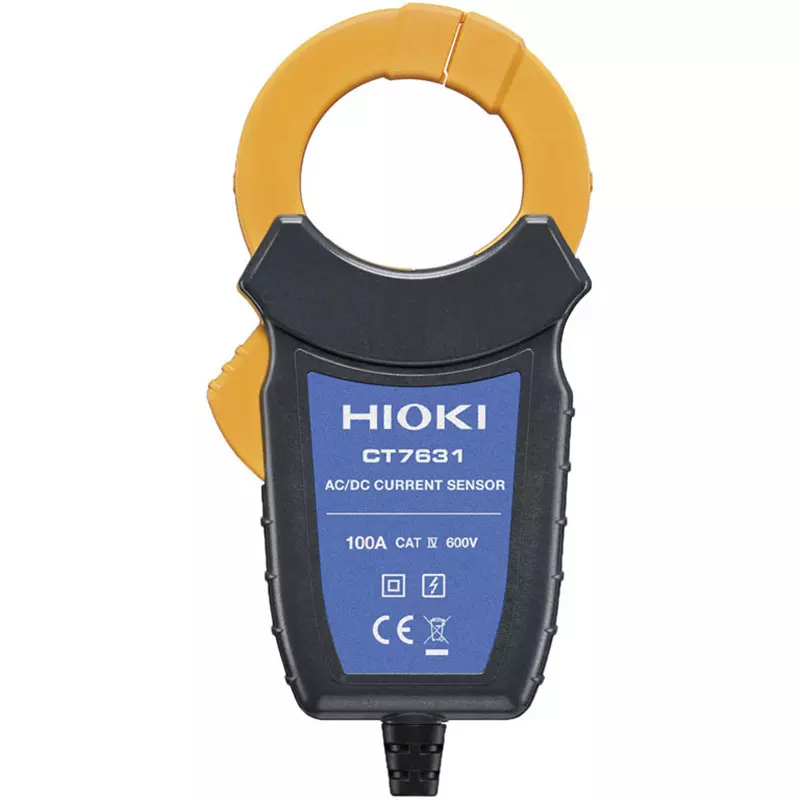

| Type of Product | Ac/Dc Current Sensor |
| Model No | CT7631 |
| Mass (g) | 250 |
| Monotaro ID | 22449254 |
Type of Product |
Ac/Dc Current Sensor |
Model No |
CT7631 |
Mass (g) |
250 |
Monotaro ID |
22449254 |
Part No |
64-4013-39 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Operating Temperature Range |
-25 to 65 ℃ |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Width (mm) |
58 |
Height (mm) |
132 |
Length (mm) |
18 |
Cable Length (m) |
2.5 |
Rated Voltage (V) |
AC / DC600 (CAT IV) (maximum distance to ground) |
Specifications |
●Output rate: 1mV/A●Output connector: HIOKI PL14 |
Dimension (WxDxH) |
58x132x18 mm |
Frequency Band (MHz) |
DC to 10 kHz (-3dB) |
Clamp Diameter (Φmm) |
33 |
Phase Accuracy |
± 1.8 deg. (Representative) |
Maximum Current (A) |
150 Amp |
Measuring Current |
AC/DC 100 A |
Dust/Water Protection |
IP40 (jaw closed) |
