Ships within 19 days
View
View
View
View

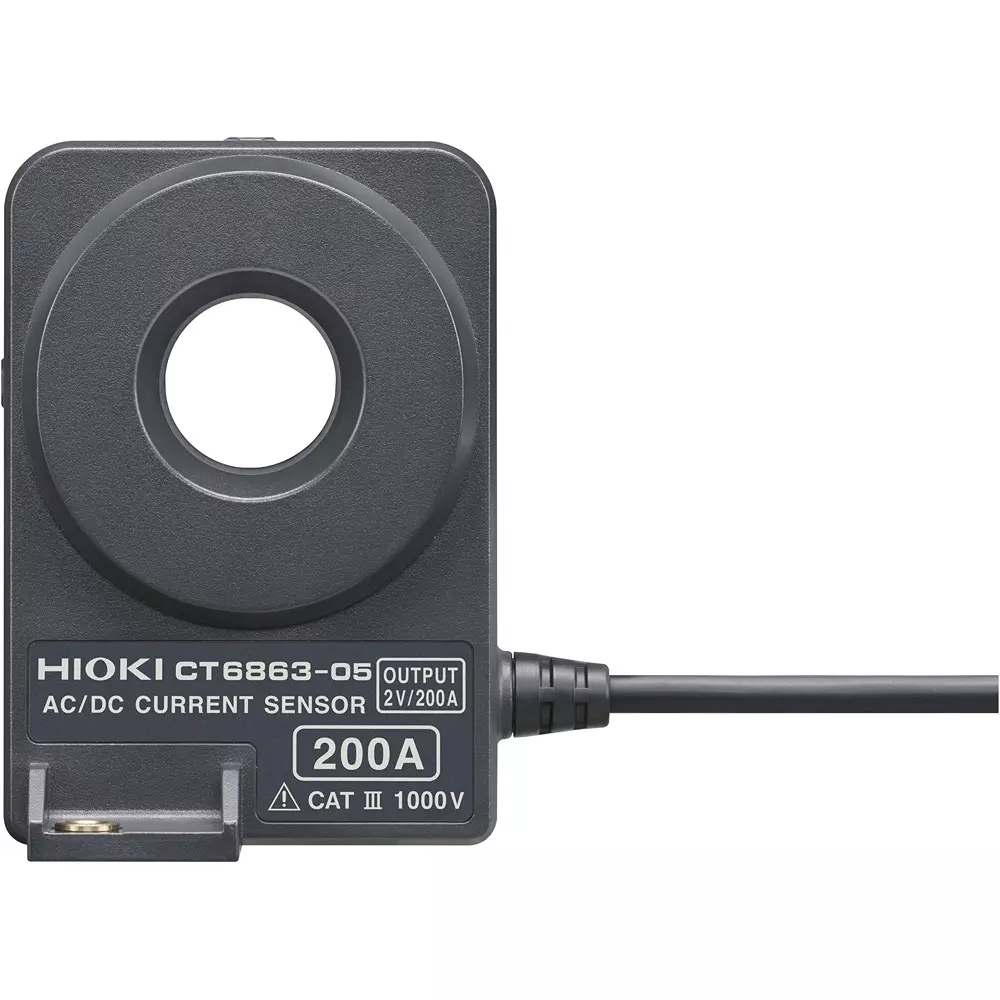

| Type of Product | Ac/Dc Current Sensor |
| Model No | CT6863-05 |
| Power Supply | Supplied via power analyzer PW8001, PW6001, PW3390, sensor unit CT9555, CT9556, CT9557, 3CH current unit U8977 |
| Output Voltage | Rate: 2 V/rated current value *The output of this device is AC+DC voltage output via the sensor unit. |
Type of Product |
Ac/Dc Current Sensor |
Model No |
CT6863-05 |
Power Supply |
Supplied via power analyzer PW8001, PW6001, PW3390, sensor unit CT9555, CT9556, CT9557, 3CH current unit U8977 |
Output Voltage |
Rate: 2 V/rated current value *The output of this device is AC+DC voltage output via the sensor unit. |
Size |
70Wx100Hx53D mm |
Mass (g) |
350 |
Monotaro ID |
52125984 |
Power Consumption |
6VA or less (200A/55Hz measurement, at ±12V power supply) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual x1, mark band x6 |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Cable Length (m) |
3 |
Specifications |
Amplitude/phase accuracy: DC (±0.05% rdg. ±0.01% fs, no phase specified), 16 Hz≦f≦400 Hz (±0.05% rdg. ±0.01% fs, ±0.2°), specified up to 500 kHz, Supplied via power analyzer PW8001, PW6001, PW3390, sensor unit CT9555, CT9556, CT9557, 3CH current unit U8977 |
Maximum Rated Voltage |
Between ground: AC/DC 1000 V (50/60Hz, CAT III) |
Frequency Characteristic |
Amplitude: DC to 500kHz, Phase: DC to 300kHz |
Operating Temperature / Humidity Range |
-30℃ to +85℃, 80% rh or less (no condensation) |
Measurable conductor diameter (Φmm) |
24 or less |
Rated Current (A) |
AC/DC 200 |
