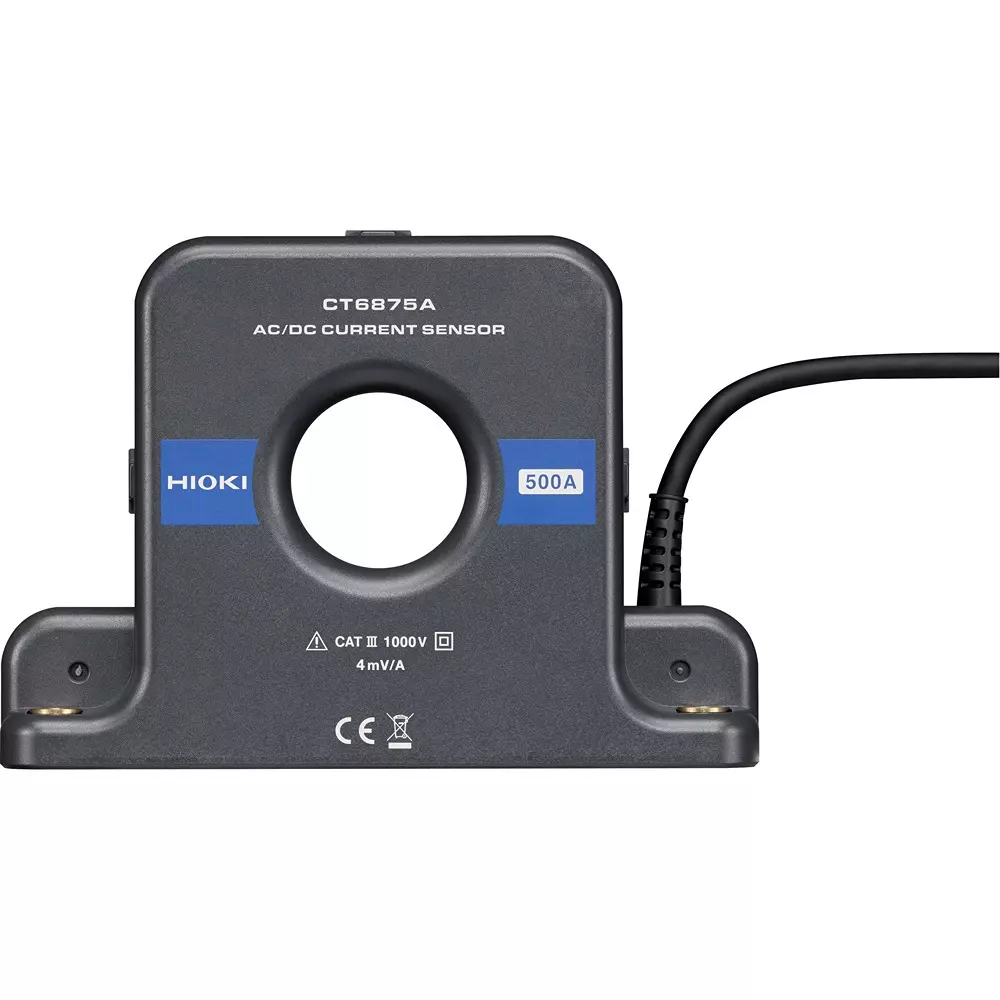

| Type of Product | Ac/Dc Current Sensor |
| Model No | CT6875A |
| Power Supply | Supplied via power analyzer PW8001, PW6001, PW3390, sensor unit CT9555, CT9556, CT9557, 3CH current unit U8977 |
| Output Voltage | Rate: 4mV/A *The output of this device is AC+DC voltage output via the sensor unit. |
Type of Product |
Ac/Dc Current Sensor |
Model No |
CT6875A |
Power Supply |
Supplied via power analyzer PW8001, PW6001, PW3390, sensor unit CT9555, CT9556, CT9557, 3CH current unit U8977 |
Output Voltage |
Rate: 4mV/A *The output of this device is AC+DC voltage output via the sensor unit. |
Size |
160Wx112Hx50D mm |
Mass (g) |
850 |
Monotaro ID |
52126018 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual x1, mark band x6, precautions for use x1 |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Linearity |
±5 ppm Typical |
Cable Length (m) |
3 |
Specifications |
Maximum input current: within derating range, up to ±1500Apeak (design value, below 40℃ and within 20ms) |
Maximum Rated Voltage |
Between ground: AC/DC 1000 V (50/60Hz, CAT III) |
Frequency Characteristic |
Amplitude: DC to 2 MHz (CT6875A), DC to 1.5 MHz (CT6875A-1), Phase: DC to 1 MHz |
Basic Accuracy |
(DC, 45 Hz ≦ f ≦ 66 Hz) Amplitude: ±0.04% rdg. ±0.008% fs, Phase: ±0.08° |
Operating Temperature / Humidity Range |
-40℃ to +85℃, 80% rh or less (no condensation) |
Rated Power (VA) |
Maximum: 7 (when measuring 500A/55Hz) |
Measurable conductor diameter (Φmm) |
36 or less |
Rated Current (A) |
AC/DC 500 |
Offset |
Voltage: ±5 PPM Typical (23℃, no input) |
