| Type of Product | Ac/Dc Current Sensor |

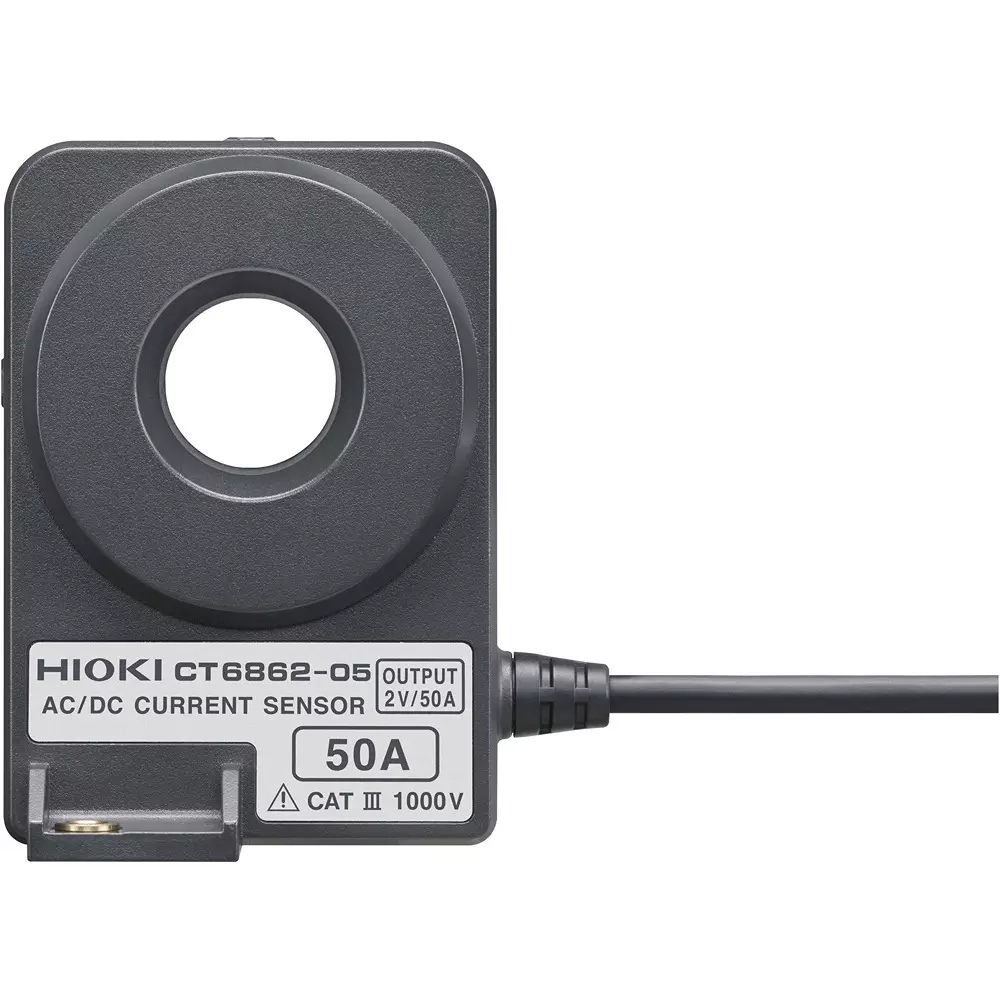

| Model No | CT6862-05 |
| Power Supply | Power is supplied via power analyzers PW8001, PW6001, PW3390, sensor units CT9555, CT9556, CT9557, and 3-channel current unit U8977. |
| Output Voltage | Rate: 2V/Rated current value *The output of this device is AC+DC voltage output via the sensor unit. |
Type of Product |
Ac/Dc Current Sensor |
Model No |
CT6862-05 |
Power Supply |
Power is supplied via power analyzers PW8001, PW6001, PW3390, sensor units CT9555, CT9556, CT9557, and 3-channel current unit U8977. |
Output Voltage |
Rate: 2V/Rated current value *The output of this device is AC+DC voltage output via the sensor unit. |
Mass (g) |
340 |
Monotaro ID |
52125975 |
Power Consumption |
5VA or less (50A/55Hz measurement, at ±12V power supply) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Included Components |
Instruction manual x 1, Mark bands x 6 |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Cable Length (m) |
3 |
Specifications |
●Maximum input current: 100A rms (within derating range) ●Amplitude/phase accuracy: DC (±0.05% rdg. ±0.01% fs, no phase specification), 16 Hz ≤ f ≤ 400 Hz (±0.05% rdg. ±0.01% fs, ±0.2°), specified up to 1 MHz |
Maximum Rated Voltage |
Between ground: AC/DC 1000 V (50/60Hz CATIII) |
Frequency Characteristic |
Amplitude: DC to 1MHz, Phase: DC to 300kHz |
Dimension (WxDxH) |
70x100x53 mm |
Operating Temperature / Humidity Range |
-30 to 85°C, 80% RH or less (non-condensing) |
Measurable conductor diameter (Φmm) |
24 or less |
Rated Current (A) |
AC/DC 50 |
