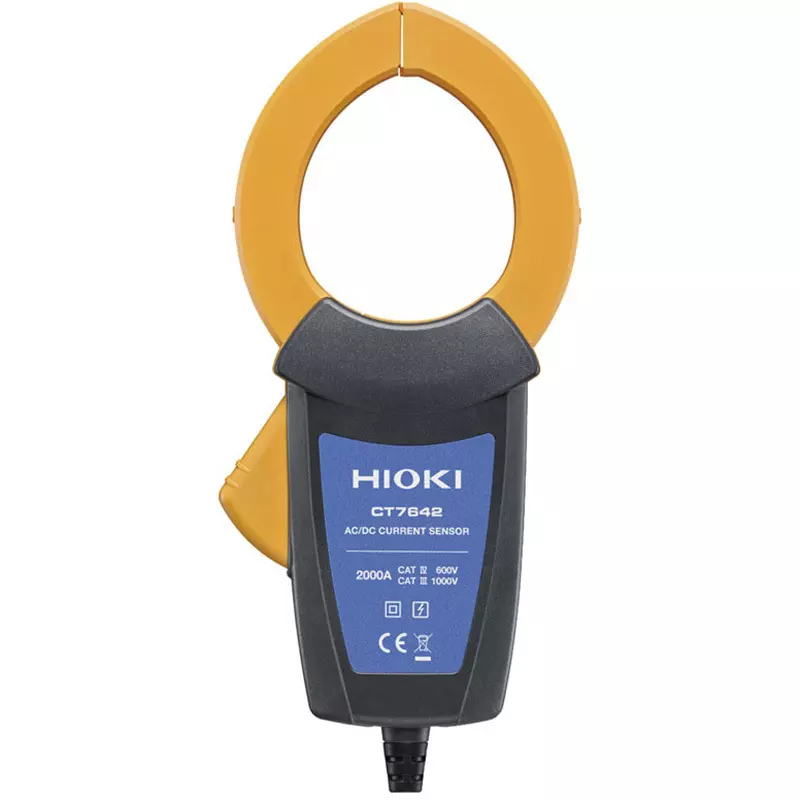

| Type of Product | Ac/Dc Current Sensor |
| Model No | CT7642 |
| Mass (g) | 510 |
| Monotaro ID | 22449272 |
Type of Product |
Ac/Dc Current Sensor |
Model No |
CT7642 |
Mass (g) |
510 |
Monotaro ID |
22449272 |
Part No |
64-4013-41 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Operating Temperature Range |
-25 to 65 ℃ |
Name of Manufacturer/Packer/Importer |
HIOKI E.E. CORPORATION |
Width (mm) |
64 |
Height (mm) |
195 |
Length (mm) |
34 |
Cable Length (m) |
2.5 |
Rated Voltage (V) |
AC / DC 600 (CAT IV), AC / DC 1000 (CAT III) (maximum distance to ground) |
Specifications |
●Output rate: 0.1mV/A ●Output connector: HIOKI PL14 |
Dimension (WxDxH) |
64x195x34 mm |
Frequency Band (MHz) |
DC to 10 kHz (-3dB) |
Clamp Diameter (Φmm) |
55 |
Phase Accuracy |
±2.3 deg. (DC < f ≦ 66 Hz) |
Maximum Current (A) |
2840 Amp |
Measuring Current |
AC/DC 2000 A |
Dust/Water Protection |
Jaw Barrier: IP50 (when jaws are closed)<br> Handle: IP54 (Only when measuring insulated conductors; measurements should not be taken while wet) |
