| Type of Product | Sensor Bracket |
| Material | Aluminum (A6063) / White anodized |
| Model No | FSKX12-12AS |
| Mass (g) | 114 |
Type of Product |
Sensor Bracket |
Material |
Aluminum (A6063) / White anodized |
Model No |
FSKX12-12AS |
Mass (g) |
114 |
Type |
For round shaft |
Monotaro ID |
46705635 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Included Components |
2 wedges (SUS304), 2 clamp levers (screw part: SUS303, lever part: zinc die cast / powder coating) |
Name of Manufacturer/Packer/Importer |
Iwata Manufacturing Co., Ltd. |

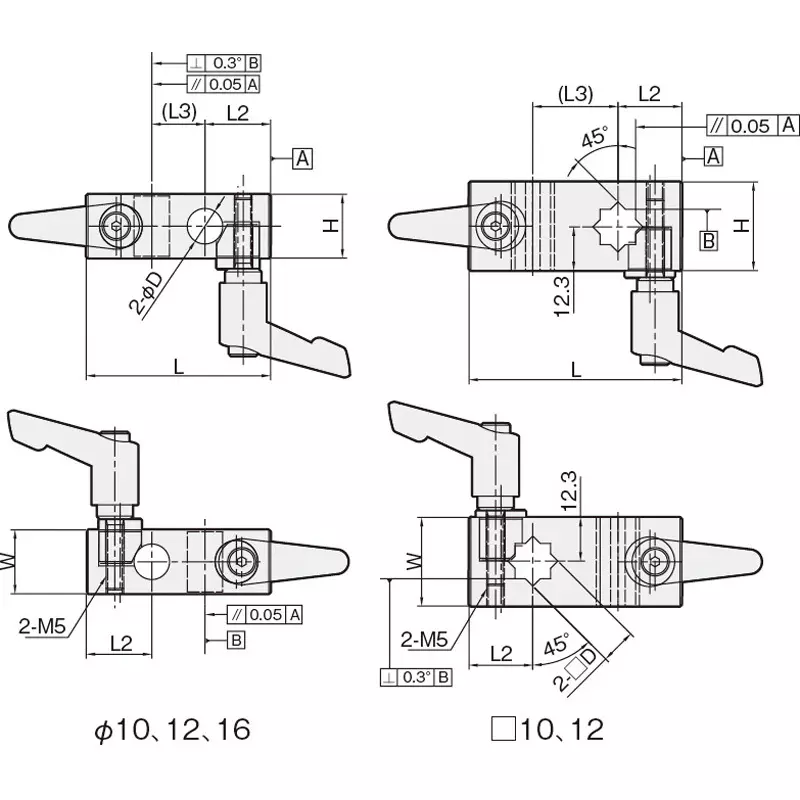

Dimension L (mm) |
52 |
Dimension L2 |
18.5 mm |
Dimension H (Φmm) |
20 |
Dimension W |
20 mm |
Compatible shaft size |
Φ12 |
Dimension L3 (mm) |
15 |
