Ships within 19 days
View
View
View
View
| Type of Product | Sensor Bracket |
| Model No | SBZ40-18 |
| Mass (g) | 38 |
| Monotaro ID | 45807106 |
Type of Product |
Sensor Bracket |
Model No |
SBZ40-18 |
Mass (g) |
38 |
Monotaro ID |
45807106 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Main Unit Material |
Iron (SPCC) |
Name of Manufacturer/Packer/Importer |
Iwata Manufacturing Co., Ltd. |

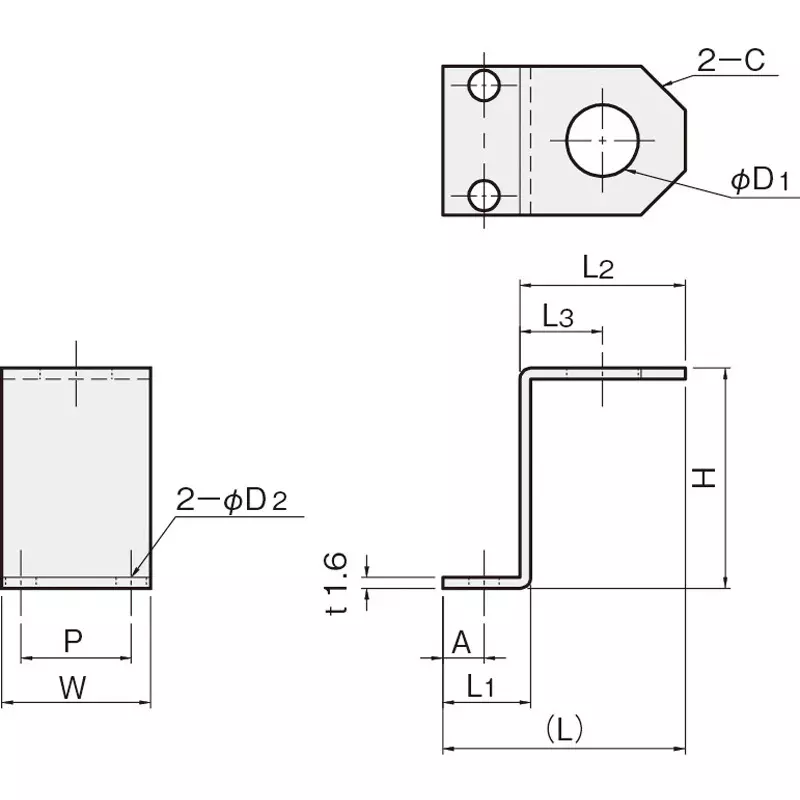

Dimension L (mm) |
48.4 |
Dimension A (Φmm) |
9 |
Dimension L2 |
32 mm |
Dimension L1 |
18 mm |
Dimension P |
26 mm |
Dimension H (Φmm) |
50 |
Dimension W |
36 mm |
Dimension C |
10 mm |
Dimension d2 (Φmm) |
6.5 |
Dimension d1 (Φmm) |
18.2 |
Surface Treatment |
Main Unit: Electroless Nickel Plating |
Suitable Inner Diameter (Φmm) |
(Set color) 40 |
Dimension L3 (mm) |
18 |
