| Type of Product | Sensor Bracket |
| Material | Aluminum (A6063BE T5) |
| Model No | FSFMBF050-S2A |
| Mass (g) | 57 |
Type of Product |
Sensor Bracket |
Material |
Aluminum (A6063BE T5) |
Model No |
FSFMBF050-S2A |
Mass (g) |
57 |
Type |
For square shaft |
Monotaro ID |
46709975 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Included Components |
Hexagon socket head cap screw (SUSXM7) 1 piece |
Name of Manufacturer/Packer/Importer |
Iwata Manufacturing Co., Ltd. |

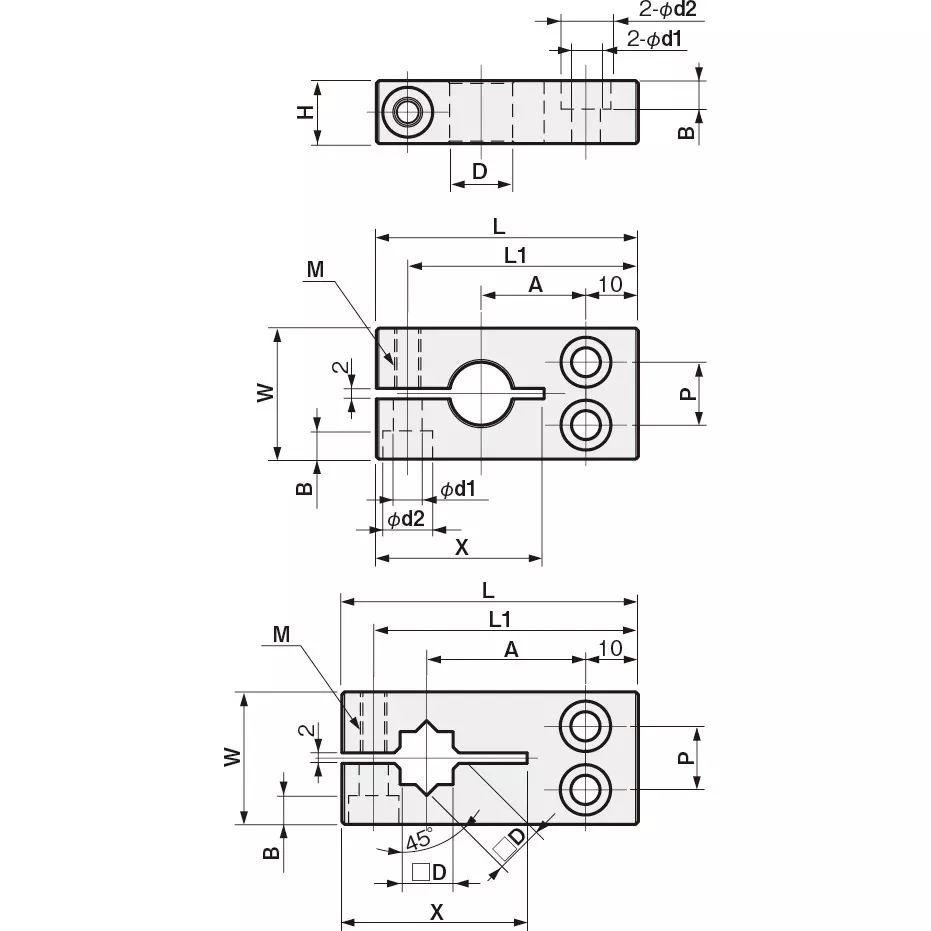

Dimension L (mm) |
78 |
Dimension A (Φmm) |
50 |
Dimension L1 |
72 mm |
Dimension P |
12 mm |
Dimension H (Φmm) |
12 |
Dimension X (mm) |
35 |
Dimension W |
25 mm |
Dimension M |
M5 mm |
Compatible shaft size |
□12 |
Dimension B (Φmm) |
5.4 |
Dimension d2 (Φmm) |
9.5 |
Dimension d1 (Φmm) |
5.5 |
