Ships within 19 days
View
View
View
View
| Type of Product | Sensor Bracket |
| Material | Aluminum (A6063) / White anodized |
| Model No | FSKX10-10AS |
| Mass (g) | 110 |
Type of Product |
Sensor Bracket |
Material |
Aluminum (A6063) / White anodized |
Model No |
FSKX10-10AS |
Mass (g) |
110 |
Type |
For round shaft |
Monotaro ID |
46705626 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Included Components |
2 wedges (SUS304), 2 clamp levers (screw part: SUS303, lever part: zinc die cast / powder coating) |
Name of Manufacturer/Packer/Importer |
Iwata Manufacturing Co., Ltd. |

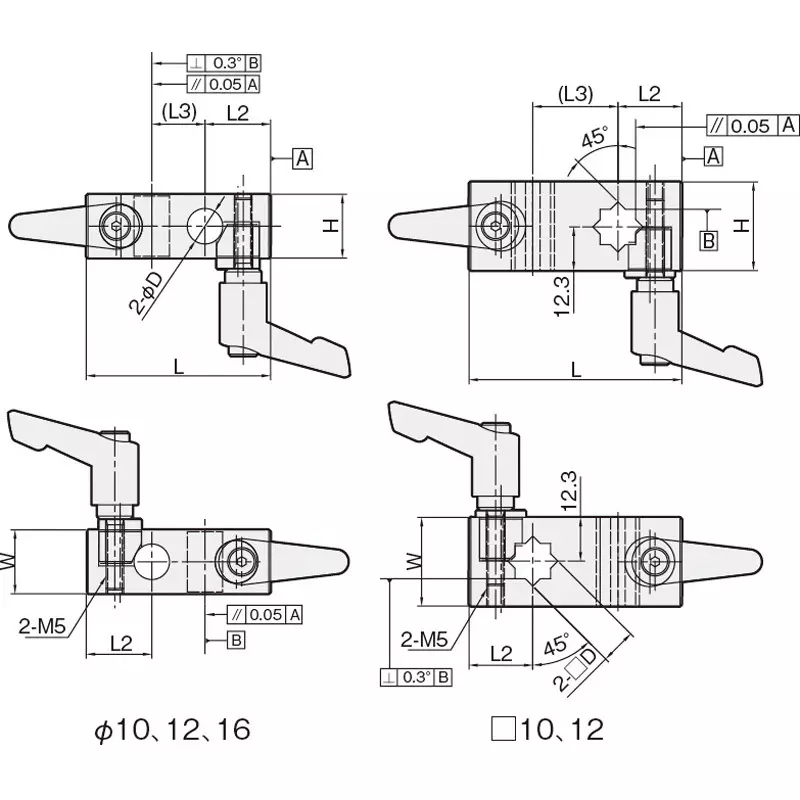

Dimension L (mm) |
52 |
Dimension L2 |
18.5 mm |
Dimension H (Φmm) |
18 |
Dimension W |
18 mm |
Compatible shaft size |
Φ10 |
Dimension L3 (mm) |
15 |
