| Type of Product | Sensor Bracket |
| Material | Aluminum (A2017) |
| Model No | FSFMARM04-14A |
| Mass (g) | 31 |
Type of Product |
Sensor Bracket |
Material |
Aluminum (A2017) |
Model No |
FSFMARM04-14A |
Mass (g) |
31 |
Type |
For round shaft |
Monotaro ID |
46707236 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Included Components |
Hexagon socket head cap screw (SUSXM7) 1 piece |
Name of Manufacturer/Packer/Importer |
Iwata Manufacturing Co., Ltd. |
Mounting Screw Spacing (mm) |
M4-12P |

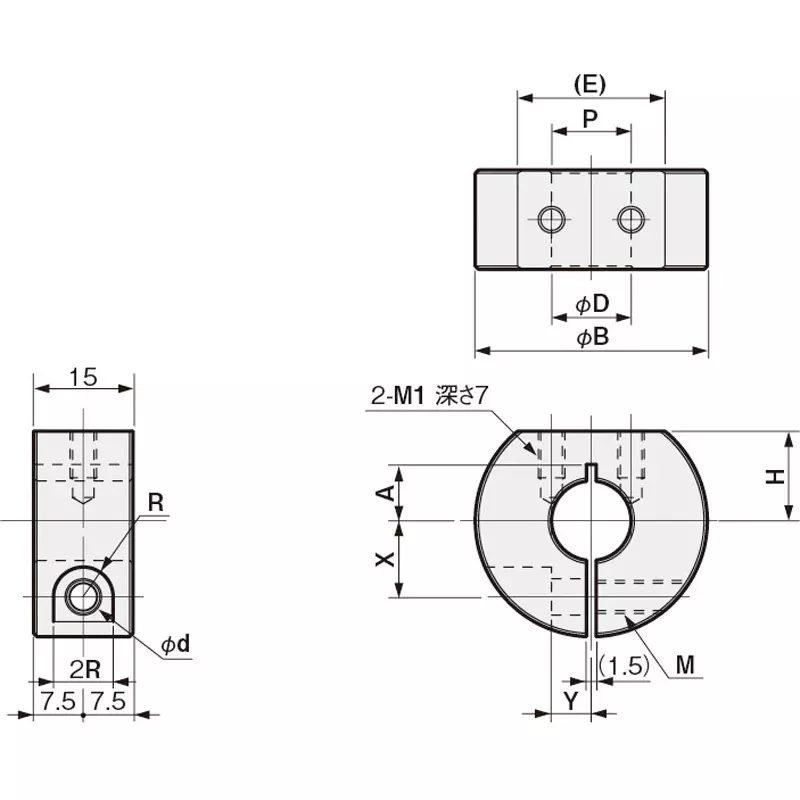

Dimension A (Φmm) |
10 |
Dimension P |
12 mm |
Dimension H (Φmm) |
13.5 |
Dimension D (Φmm) |
5.5 |
Dimension X (mm) |
11.5 |
Dimension Y (mm) |
6 |
Dimension M |
M5 mm |
Compatible shaft size |
Φ14 |
Dimension B (Φmm) |
35 |
Dimension E (Φmm) |
22.3 mm |
Dimension M1 (mm) |
M4 |
Dimension R |
4.5 mm |
