Ships within 19 days
View
View
View
View
| Type of Product | Sensor Bracket |
| Material | Aluminum (A6063S-T5) / White anodized |
| Model No | FSSARL160-04A |
| Mass (g) | 24 |
Type of Product |
Sensor Bracket |
Material |
Aluminum (A6063S-T5) / White anodized |
Model No |
FSSARL160-04A |
Mass (g) |
24 |
Monotaro ID |
46707762 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Name of Manufacturer/Packer/Importer |
Iwata Manufacturing Co., Ltd. |

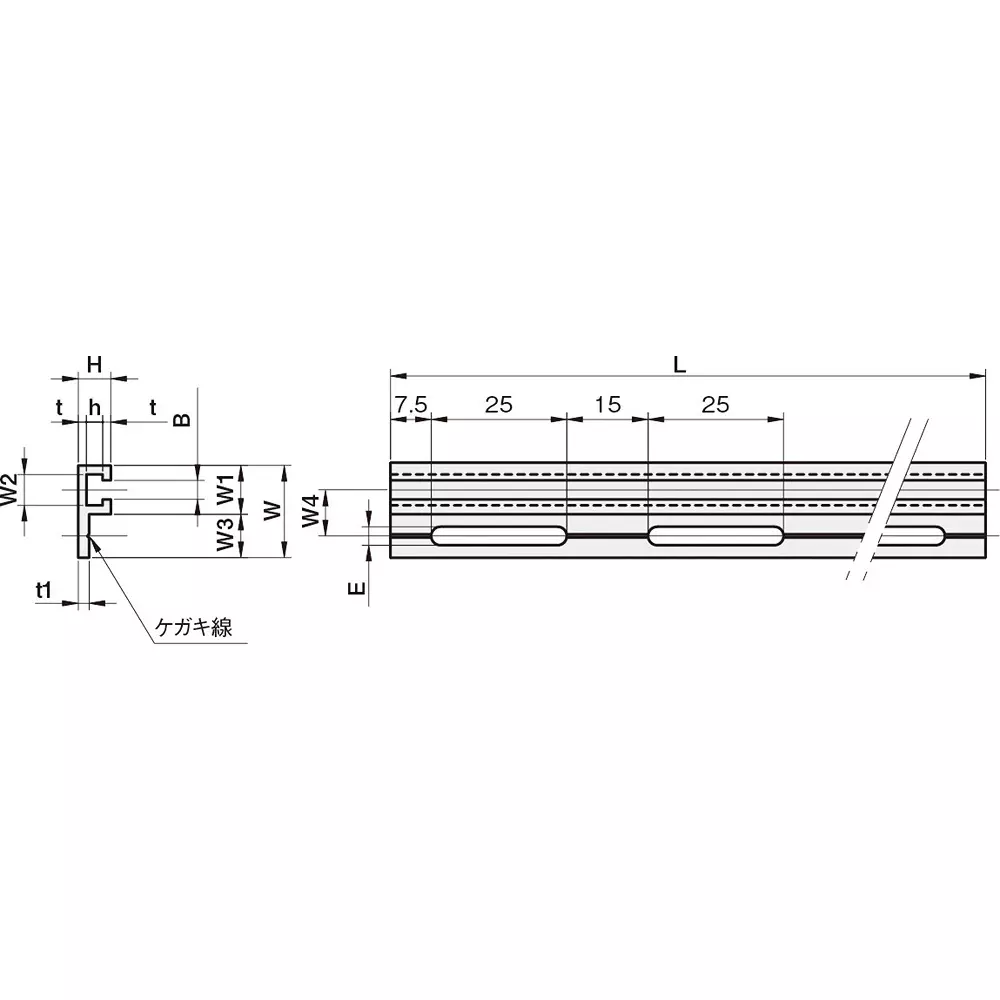

Dimension L (mm) |
160 |
Dimension H (Φmm) |
8 |
Dimension T |
2 mm |
Dimension W |
20 mm |
Dimension B (Φmm) |
4.6 |
Suitable Size (mm) |
M4 |
Dimension E (Φmm) |
4.5 mm |
Dimension W1 (mm) |
11 |
Dimension W2 (mm) |
7.2 |
Dimension t1 (mm) |
2 |
Number of Holes |
4 |
Dimension W4 (mm) |
10 |
Dimension W3 (mm) |
9 |
