| Type of Product | Signal Relay |
| Height | 10mm |
| Country of Origin | China |
| Dimension | 12.5 x 10 x 7.5mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Signal Relay |
Height |
10mm |
Country of Origin |
China |
Dimension |
12.5 x 10 x 7.5mm |
Features |
Maximum 4A Switching Capability, High Sensitive, Plastic Sealed Type Available |
Length |
12.5mm |
Series |
HFD23 |
Name of Manufacturer/Packer/Importer |
Hongfa Europe GMBH |
Coil Voltage |
12V dc |
Contact Material |
Gold Plated |
Pack of |
5 Pcs |
No. of Pole |
1 |
Maximum Switching Voltage (AC) |
125V |
Switching Current |
2A |
Maximum Switching Voltage (DC) |
60V |
Contact Configuration |
SPDT |

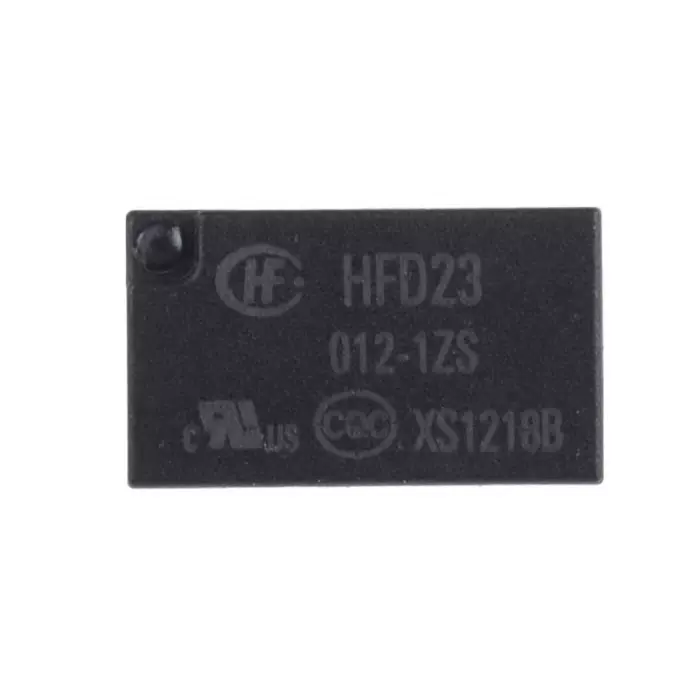

Manufacturer Part Number |
HFD23/012-1ZS |
Minimum Operating Temperature |
-40°C |
Coil Resistance |
960Ω |
Depth |
9.9mm |
Latching |
No |
Maximum Operating Temperature |
+70°C |
Terminal Type |
PCB Pin |
Coil Power Consumption |
150mW |
Operating Temperature Range |
-40 - +70°C |
Operating Cycle |
1 x 10^7 cycles |
Maximum Switching Power AC |
125VA |
Electrical Life |
100000 operations |
Relay Switching Classification |
Subminiature Signal Relay |
Maximum Switching Current DC |
2 A |
Maximum Switching Current AC |
4 A |
Maximum Switching Voltage DC |
60V |
Isolation Coil To Contact |
1.5kV rms |
Maximum Switching Current (AC) |
4 A |
Maximum Switching Power DC |
60 W |
Maximum Switching Current (DC) |
2 A |
