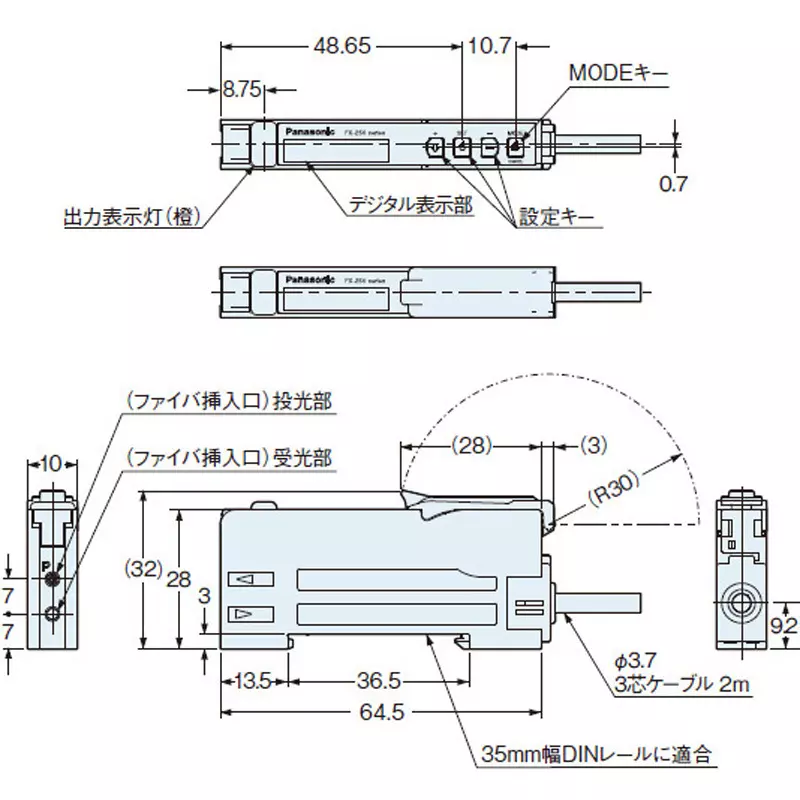

| Model No | FX-251P-C2 |
| Type of Product | Digital Fiber Sensor |
| Country of Origin | Japan |
| Cable | 0.2mm2 3-core cabtyre cable with 2m |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
FX-251P-C2 |
Type of Product |
Digital Fiber Sensor |
Country of Origin |
Japan |
Cable |
0.2mm2 3-core cabtyre cable with 2m |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
58718576 |
Response Time |
H-SPD: 35 μs or less, FAST: 60 μs or less, STD: 250 μs or less, LONG: 2ms or less, H-PWR: 25ms or less Switchable |
Output Indicator |
Orange LED (lights up when output is ON) |
Applicable Standard |
CE marking (EMC directive, RoHS directive) |
Output |
PNP transistor, open collector, maximum output current: 100mA<br> Applied voltage: 30 V DC or less (between output and +V)<br> Residual voltage: 2V or less (at maximum current) |
Specifications |
●Sensitivity setting methods: 2-point teaching / limit teaching / full auto teaching / manual adjustment ●Incoming light intensity adjustment function: Equipped, up to 100 levels ●Incoming light intensity adjustment display range: H-SPD / FAST / STD: 0 to 4,000, LONG / H-PWR: 0 to 9,999 |
RoHS Directive |
Correspondence |
Short Circuit Protection |
Equipment |
Power Consumption (mW) |
960 or less (current consumption 40 mA or less at a power supply voltage of 24 V) |
Output Operation |
Switchable: On When Light Is Received / On When No Light Is Received |
Import Country |
Direct Import from Japan |
Power Supply Voltage |
12-24 DC ± 10% Ripple P-P10% or less |
