| Model No | CX411PZ |

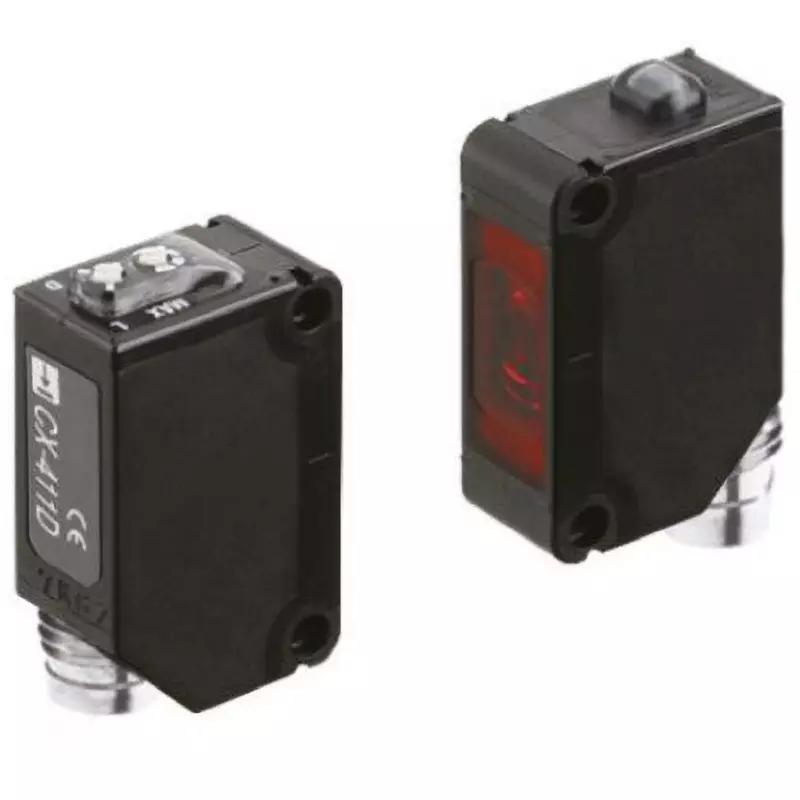

| Type of Product | Compact Beam Sensor |
| Country of Origin | Japan |
| Series | CX-400 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
CX411PZ |
Type of Product |
Compact Beam Sensor |
Country of Origin |
Japan |
Series |
CX-400 |
Light Source |
LED |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Output Type |
PNP |
Monotaro ID |
47801593 |
Response Time |
<=1ms |
Maximum Current |
100 mA |
Specifications |
CX-400-Thru-beam photoelectric sensor. The CX-400 series is environmentally friendly and easy to handle, reducing power consumption by up to 60%. The CX-400 series has three different cable lengths. Environmentally friendly, easy-to-use sensor Reduces carbon dioxide emissions Ultra-compact design Wide-range / visible spot compatible monopolar lighting Battery switching between light and dark Short circuit protection |
Import Country |
Direct Import from Japan |
Sensor |
Block type |
Detection Distance (m) |
10 |
Housing Material |
PBT |
Electric Connection |
M8 Connector |
Maximum DC Voltage |
24 V |
Detection Method |
Through beam (emitter and receiver) |
Optical System |
Phototransistor |
Protection Class |
IP67 |
