| Model No | BBR910 |
| Type of Product | Sensor Interlocking Unit |
| Suitable For | (Operation circuit voltage) For 24 V AC (operable voltage range: 18 to 30 V AC) |
| Country of Origin | Japan |
Model No |
BBR910 |
Type of Product |
Sensor Interlocking Unit |
Suitable For |
(Operation circuit voltage) For 24 V AC (operable voltage range: 18 to 30 V AC) |
Country of Origin |
Japan |
Type |
Sensor Interlocking Unit |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Terminal |
(Width) 7.6 mm |
Monotaro ID |
38171682 |
Rated Voltage (V) |
AC24 |
Current Consumption (mA) |
3 |
Specifications |
(The Number Of Possible Interlocking) 1P: 3, 2P: 1 |
Import Country |
Direct Import from Japan |
Terminal Screw |
M3.5 |
Applicable tightening torque (Nm (kgf cm)) |
0.5-0.7 |
Material (Terminal Screw) |
Steel |
Terminal Width |
7.6 mm |
voltage rating (V) |
AC18-30 |
Terminal Material |
Brass (Sn plated) |
Cover Material |
Heat resistant ABS resin |
Suitable Cable Range |
(Maximum) Φ1.6 mm, 2 mm² ) |
Contact Capacity |
DC 24 V 30-DC 50 V 70 |
Ambient Humidity to Use |
45-85%RH |
Wiring Length |
600m (reference value) |

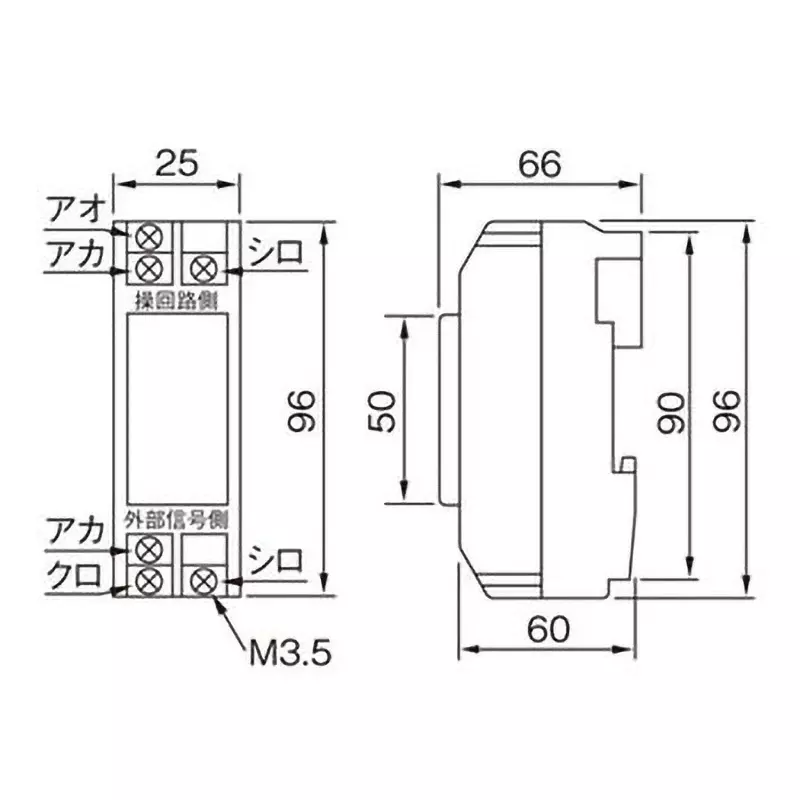

Outer Dimensions |
25x60x96 mm |
Module |
Jis Agreement Type |
Operation Ambient Temperature (°C) |
-10-50 |
