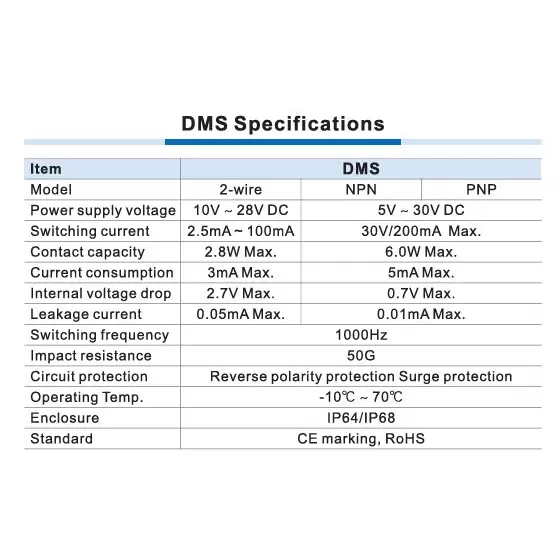

| Switching Frequency | 1000 Hz |
| Type of Product | Solid State Sensor |
| Model No | DMSE-N |
| No. of Wires | 3 Wire |
Switching Frequency |
1000 Hz |
Type of Product |
Solid State Sensor |
Model No |
DMSE-N |
No. of Wires |
3 Wire |
Switching Current |
30 V/200 mA Max. |
Output Type |
NPN |
Operating Temperature |
-10°C to 70°C |
Country of Origin |
India |
Type |
General |
Power Supply Voltage |
5 - 30 V DC |
Current Consumption |
5 mA Max. |
Length |
2 m |
Series |
DMS |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
IP Rating |
IP64 |
Voltage Drop |
Internal: 0.7 V Max. |
Standard |
CE Marking, RoHS |
Circuit Protection |
Reverse Polarity, Surge Protection |
Leakage Current |
0.01 mA Max. |
Impact Resistance |
30 G |
Contact Capacity |
6.0 W Max. |
