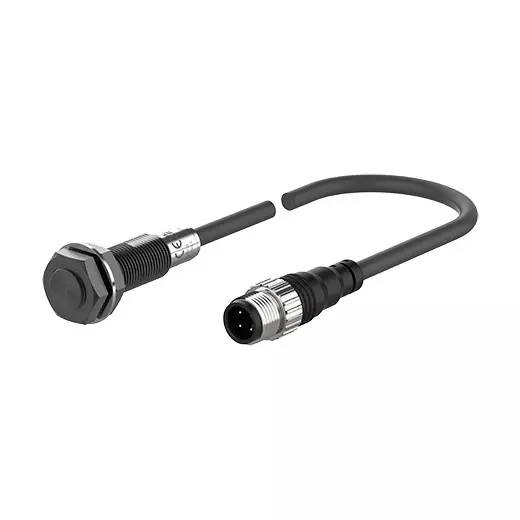

Autonics Inductive Proximity Sensor V1-10-30 VDC, PRFDAW12-3DN-V-K

Name: Autonics Inductive Proximity Sensor V1-10-30 VDC, PRFDAW12-3DN-V-K
Brand: Autonics
SKU: HYD.SEN.340213326
Price: 20059 INR
Availability: InStock

Visit the Autonics Store

EMI starts at ₹1782/month. No Cost EMI available.

Available offers

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Flat ₹200 off on Order above ₹6000 | Valid for REPEAT Business User

View

Flat ₹400 off on Order above ₹10,000 | Valid for NEW Business Users

View

Features

Type of Product	Inductive Proximity Sensor
Model No	PRFDAW12-3DN-V-K
Sensing Distance	3mm
Country of Origin	South Korea

More Autonics Sensors products More Sensors products

Warranty as Per Brand

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Type of Product	Inductive Proximity Sensor
Model No	PRFDAW12-3DN-V-K
Sensing Distance	3mm
Country of Origin	South Korea
Protection Circuit	Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit
Insulation Resistance	≥ 50 MΩ (500 VDC Megger)
Response Frequency	10 Hz
Control Output	Max. 100mA
Material	Case / Nut: stainless steel 303 (SUS303, PTFE coated), rear cap: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated)
Residual voltage (V)	≤ 2.5 V
Name of Manufacturer/Packer/Importer	Teknocrats Control System (I) Pvt Ltd.
Connector Type	M12 plug connector
Protection Structure	IP66, IP67 (IEC standard)
Sensing Side Diameter	Ø12 mm
Environment Ambient Temperature	-25 to 70 ℃, Storage: -25 to 70 ℃ (no freezing or condensation)
Current Rating	Current consumption: Max. 20mA
Hysteresis Distance	Max. 15% of sensing distance
Standard Sensing Target	21×21×1 mm(iron)
Environment Ambient Humidity	35 to 95 %RH, Storage: 35 to 95 %RH (no freezing or condensation)
Unit Weight (Kg/g)	≈ 35 g (≈ 60 g)
Vibration	1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours
Connection	Cable connector type
Shock	1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times
Power Voltage	10 - 30 VDC(ripple P-P: ≤ 10 %)
Dielectric Strength	Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
Cable Standard/Material	Oil resistant cable (dark gray)
Installation	Flush
Indicator	Stable indicator (green), unstable indicator (orange), Abnormal detect indicator (cross-flashing green, orange)
