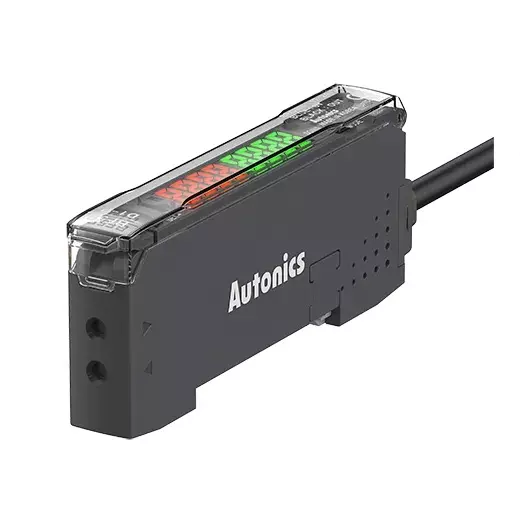

| Type of Product | Fiber Optic Sensor |
| Model No | BF5G-D1-P |
| Weight | Approx. 138g(approx. 20g) |
| Country of Origin | South Korea |
Type of Product |
Fiber Optic Sensor |
Model No |
BF5G-D1-P |
Weight |
Approx. 138g(approx. 20g) |
Country of Origin |
South Korea |
Type |
Dual display |
Operation Mode |
Light ON/Dark ON(set by parameter) |
Current Consumption |
mAx. 50 mA |
Control Output |
PNP open collector |
Response Time |
50㎲, 150㎲, 500㎲, 4ms, 10ms |
Timer Function |
OFF, OFF Delay, ON Delay, One-shot(1 to 5000ms) |
Material |
Case: Polybutylene terephthalate, Cover: Polycarbonate |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Protection Structure |
IP40 |
Environment Ambient Temperature |
-10 to 50℃, Storage: -20 to 70℃ |
Environment Ambient Humidity |
35 to 85% RH, Storage: 35 to 85% RH |
Power Voltage |
12-24VDC ±10%(ripple P-P: max. 10%) |
Environment Ambient Illumination |
Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
Light Source |
Green LED(530nm) |
Energy Saving |
Normal/Energy saving 1/Energy saving 2 |
Sensitivity Adjustments |
Manual Teaching(auto-tuning, 1-point, 2-point, positioning) ※ In multiple connection, batch teaching available |
Communications |
I2C(max. 8 units) |
Accessories |
Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector |
Display Method |
4-Digit 7-Segment LED |
Initializing |
Initializing as factory mode |
Mutual Interference Prevention |
Max. 8 unit sets(automatically set regardless of response time) |
