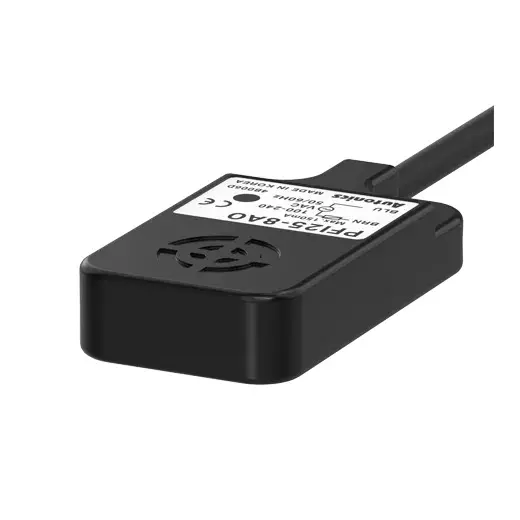

| Type of Product | Inductive Proximity Sensor |
| Model No | PFI25-8AC |
| Weight | Approx. 70g |
| Sensing Distance | 8mm |
Type of Product |
Inductive Proximity Sensor |
Model No |
PFI25-8AC |
Weight |
Approx. 70g |
Sensing Distance |
8mm |
Country of Origin |
South Korea |
Response Frequency |
20Hz |
Control Output |
Normally Closed |
Material |
Poly Phenylene Sulfide |
Residual voltage (V) |
Max. 10V |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Protection Structure |
IP67(IEC standard) |
Wire Type and Power |
AC 2-wire type 100-240VAC~ |
Environment Ambient Temperature |
-25 to 70℃, Storage: -30 to 80℃ |
Current Rating |
Leakage current: Max. 2.5mA |
Hysteresis Distance |
Max. 10% of sensing distance |
Standard Sensing Target |
25×25×1 mm(iron) |
Environment Ambient Humidity |
35 to 95% RH, Storage: 35 to 95% RH |
Sensing Type |
Upper sensing type |
Sensing Side Size |
Frame size 25 mm |
