Ships within 60 days
View
View
View
View
| Switching Frequency | ≥ 25 Hz |
| Ambient Temperature | -25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) |
| Type of Product | Ultrasonic Sensors |

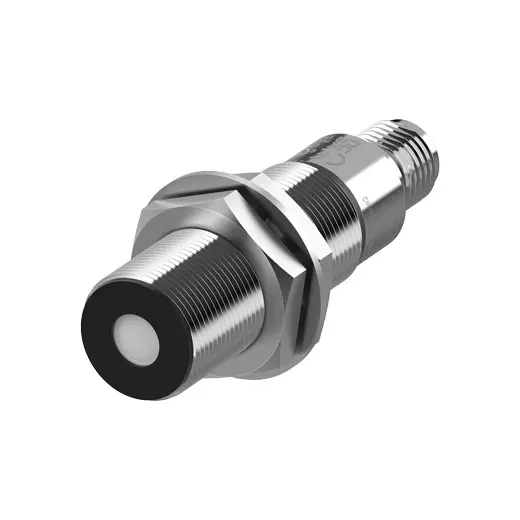

| Model No | UTRCM18-350D |
Switching Frequency |
≥ 25 Hz |
Ambient Temperature |
-25 to 70 ℃, storage: -40 to 85 ℃ (no freezing or condensation) |
Type of Product |
Ultrasonic Sensors |
Model No |
UTRCM18-350D |
Sensing Distance |
30 to 350 mm |
Country of Origin |
South Korea |
Protection Circuit |
Surge protection circuit, output short over current protection circuit, reverse polarity protection |
Insulation Resistance |
≥ 50 MΩ (500 VDC Megger) |
Current Consumption |
≤ 40 mA (no load) |
Response Time |
≤32 ms |
Material |
Case: mount - SUS316L, body - PC, transducer: Polyurethane foam, epoxy resin with glass |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Connector Type |
M12 5-pin plug connector |
Hysteresis |
3 mm |
Analog Output |
[current output] DC 4 -20 mA |
Protection Structure |
IP66, IP67 (IEC standard), IP69K (DIN standard), IP68 |
Standard Sensing Target |
200x200 mm |
Unit Weight (Kg/g) |
≈ 30 g (≈ 85 g ) |
Vibration |
1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours |
Connection |
Connector models |
Shock |
500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times |
Power Voltage |
12 - 30 VDC (ripple P-P: ≤ 10 %) |
Dielectric Strength |
Between the charging part and the case: 1,000 VAC~ 50 / 60 Hz for 1 min |
Transducer Frequency |
305 kHz |
Digital Output |
Push-pull |
Foreground Suppression |
30 to 90 mm |
Blind Zone |
0 to 27 mm |
Resolution |
≥ 0.069 mm |
Maximum Setting Zone |
350 mm |
