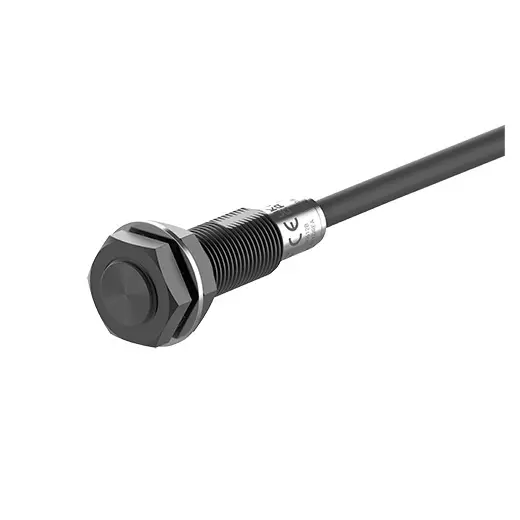

| Type of Product | Inductive Proximity Sensor |
| Model No | PRFAT12-2DO-V |
| Sensing Distance | 2mm |
| Country of Origin | South Korea |
Type of Product |
Inductive Proximity Sensor |
Model No |
PRFAT12-2DO-V |
Sensing Distance |
2mm |
Country of Origin |
South Korea |
Protection Circuit |
Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
Insulation Resistance |
≥ 50 MΩ (500 VDC Megger) |
Response Frequency |
100Hz |
Control Output |
3 to 100 mA |
Material |
Case / Nut: stainless steel 303 (SUS303, PTFE coated), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated) |
Residual voltage (V) |
Max. 3.5V |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Protection Structure |
IP67(IEC standard) |
Sensing Side Diameter |
Ø12 mm |
Environment Ambient Temperature |
-25 to 70 ℃, Storage: -25 to 70 ℃ (no freezing or condensation) |
Current Rating |
Leakage current: Max. 0.8mA |
Hysteresis Distance |
Max. 15% of sensing distance |
Standard Sensing Target |
12×12×1 mm(iron) |
Environment Ambient Humidity |
35 to 95 %RH, Storage: 35 to 95 %RH (no freezing or condensation) |
Unit Weight (Kg/g) |
≈ 83 g (≈ 110 g) |
Vibration |
1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
Connection |
Cable type |
Shock |
1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 10 times |
Power Voltage |
12 - 24 VDC(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC |
Dielectric Strength |
Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
Cable Standard/Material |
Oil resistant cable (gray): polyvinyl chloride (oil resistant PVC) |
Installation |
Flush |
Indicator |
Operation indicator (red LED) |
