Ships within 60 days
View
View
View
View

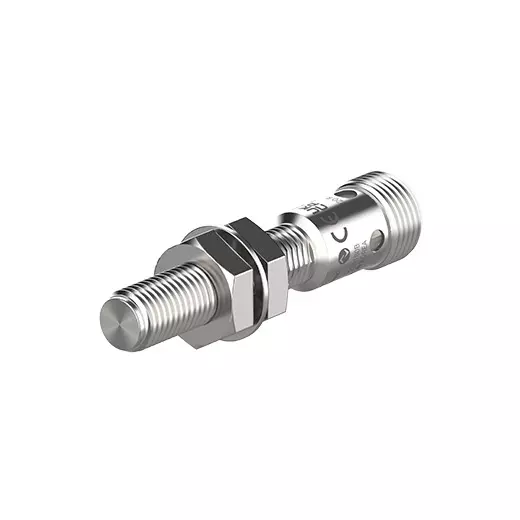

| Type of Product | Inductive Proximity Sensor |
| Model No | PRFDCM08-2D-IL2 |
| Sensing Distance | 2mm |
| Country of Origin | South Korea |
Type of Product |
Inductive Proximity Sensor |
Model No |
PRFDCM08-2D-IL2 |
Sensing Distance |
2mm |
Country of Origin |
South Korea |
Protection Circuit |
Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
Insulation Resistance |
≥ 50 MΩ (500 VDC Megger) |
Response Frequency |
150Hz |
Control Output |
Max. 100mA |
Material |
Case / Nut: stainless steel 303 (SUS303), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303) |
Residual voltage (V) |
≤ 2.5 V |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Connector Type |
M12 plug connector |
Protection Structure |
IP66, IP67 (IEC standard), IP67G (JEM standard), IP68 |
Sensing Side Diameter |
Ø8 mm |
Environment Ambient Temperature |
-25 to 70 ℃, Storage: -25 to 70 ℃ (no freezing or condensation) |
Current Rating |
Current consumption: Max. 20mA |
Hysteresis Distance |
Max. 15% of sensing distance |
Standard Sensing Target |
12×12×1 mm(iron) |
Environment Ambient Humidity |
35 to 95 %RH, Storage: 35 to 95 %RH (no freezing or condensation) |
Unit Weight (Kg/g) |
≈ 10 g (≈ 35 g) |
Vibration |
1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours |
Connection |
Connector models |
Shock |
500 m/s² (≈ 50 G) in each X, Y, Z direction for 10 times) |
Power Voltage |
10 - 30 VDC(ripple P-P: ≤ 10 %) |
Dielectric Strength |
1,000 VAC~ 50 / 60 Hz for 1 minute (between all terminals and case) |
Installation |
Flush |
Indicator |
IO-Link mode, SIO mode |
