| Housing Material | Polyamide |
| Ambient Temperature | -10-70 °C |

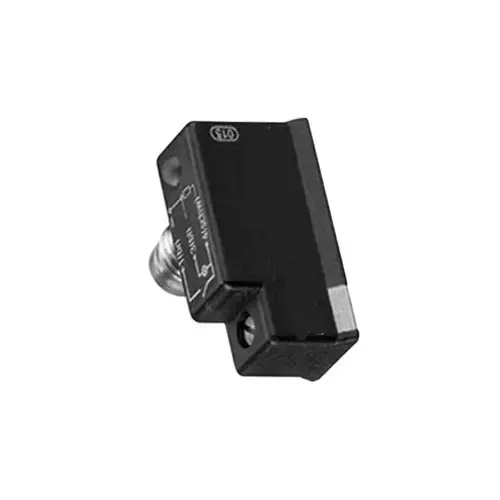

| Type of Product | Sensor Series ST9 Sensor |
| Model No | 830100487 |
Housing Material |
Polyamide |
Ambient Temperature |
-10-70 °C |
Type of Product |
Sensor Series ST9 Sensor |
Model No |
830100487 |
Country of Origin |
Germany |
Mounting |
Direct mounting for series KHZ |
Vibration Resistance |
60 g (50…2000 Hz) |
Shock Resistance |
100 g / 11 ms |
Series |
Series KHZ |
Name of Manufacturer/Packer/Importer |
INGSOL LLP |
Maximum Switching Frequency |
2000 Hz |
Switching |
±0.1 mT |
Minimum operating voltage |
12 V DC |
Contact Type |
Electronic PNP |
Protection |
IP67, IP65 |
Pole |
3-pin |
Slot Width |
9 mm groove |
Current |
< 3 mA |
Nominal Current |
< 7 mA |
Resistance |
Protected against polarity reversal, short circuit resistant |
Max. DC Switching Current |
0.2 A |
Maximum Operating Voltage |
36 V DC |
Electrical Connections |
Plug, M8 |
Voltage Drop |
≤ 2.0 V |
