Ships within 25 days
View
View
View
View
| Protection Class | IEC Standard IP68 |
| Cable Length | 2 m |

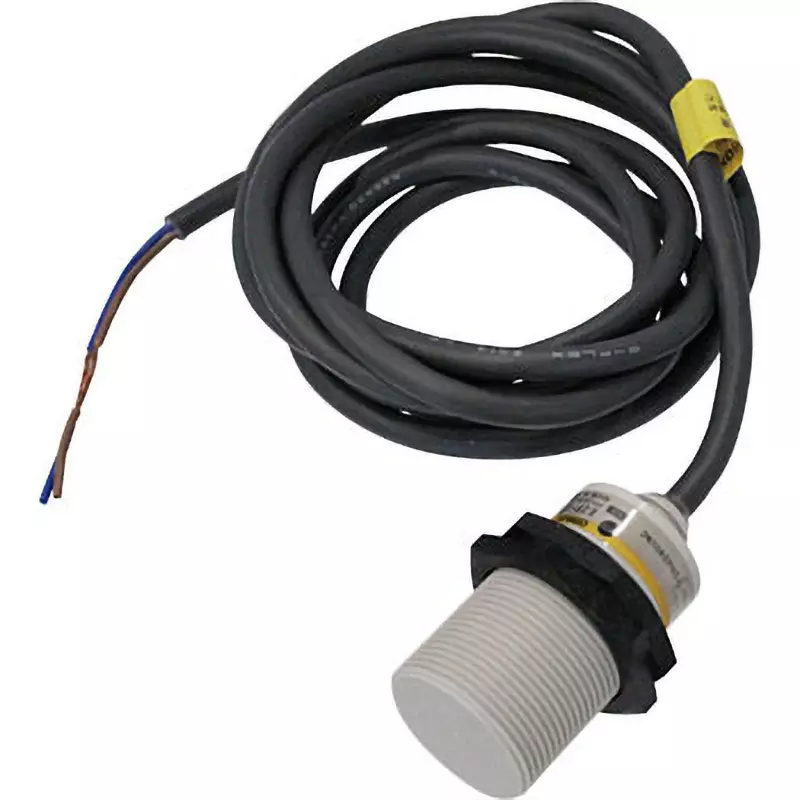

| Type of Product | Proximity Sensor |
| Model No | E2F-X10Y1 2M |
Protection Class |
IEC Standard IP68 |
Cable Length |
2 m |
Type of Product |
Proximity Sensor |
Model No |
E2F-X10Y1 2M |
Weight |
Approx. 170 g (Packed) |
Country of Origin |
CHINA |
Detection Distance |
10mm±10% |
Head Shape |
Screw |
Monotaro ID |
39047075 |
Switching Capacity |
5-300 mA |
Case Material |
Polyarylate |
Ambient Humidity |
Operating & Storage: 35 to 95% RH Each (No Condensation) |
Influence of Voltage |
± 1% or less of sensing distance at rated power supply voltage within the range of rated power supply voltage ± 10% |
Standard sensing Object |
Iron: 30 × 30 × 1 mm |
Connection Type |
Cord drawer type |
Insulation Resistance |
Between live parts and case: 50 MΩ or more (at 500 VDC) |
Setting Distance (mm) |
0～8 mm |
Power Supply Voltage |
AC24～240 V |
Vibration Resistance |
10-55 Hz, multiple width 1.5 mm, X, Y, Z directions 2h |
Output |
AC 2-Wire Type |
Operating Voltage Range |
AC20～264 V |
Response Frequency |
25 Hz |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Import Country |
Direct Import from Japan |
