| Protection Class | IEC standard IP67 |
| Type of Product | Proximity Sensor |

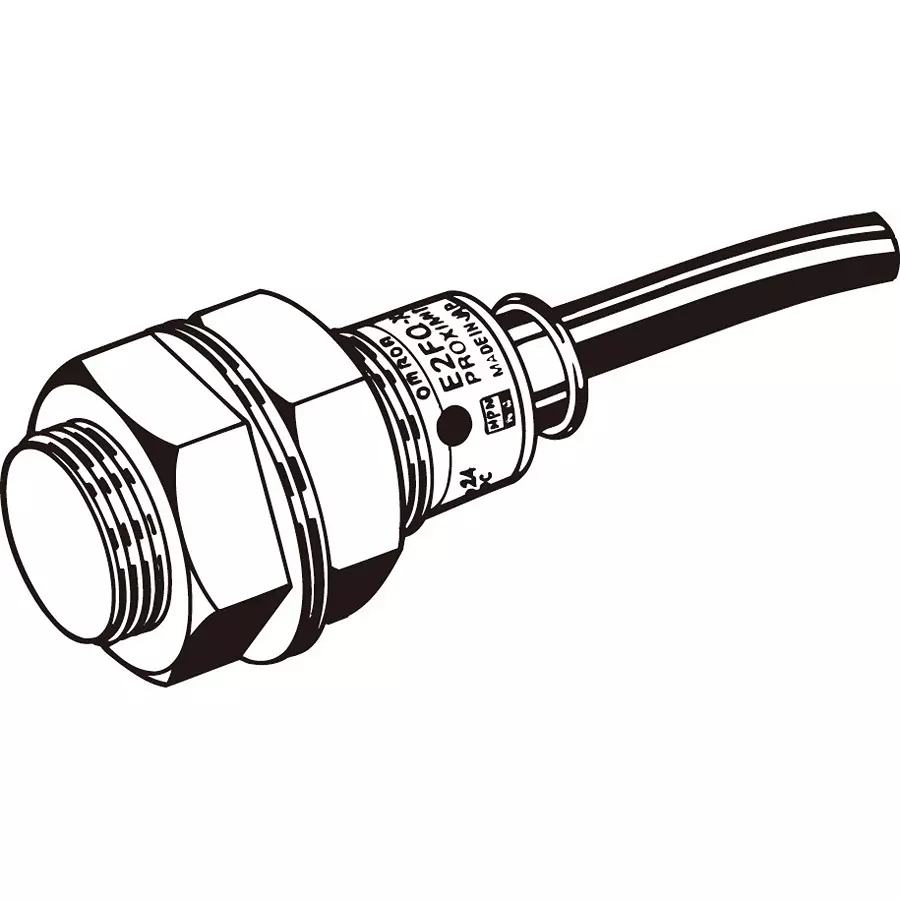

| Model No | E2FQ-X5E1 2M |
| Weight | Approx. 130 g (Packed) |
Protection Class |
IEC standard IP67 |
Type of Product |
Proximity Sensor |
Model No |
E2FQ-X5E1 2M |
Weight |
Approx. 130 g (Packed) |
Country of Origin |
Japan |
Detection Distance |
5 mm |
Head Shape |
Screw |
Monotaro ID |
39047032 |
Switching Capacity |
200 mA or Less |
Case Material |
Fluorine Resin |
Protection Circuit |
Reverse Connection Protection, Load Short Circuit Protection, Surge Absorption |
Ambient Humidity |
Operating & Storage: 35 to 95% RH Each (No Condensation) |
Influence of Voltage |
± 2.5% or less of sensing distance at rated power supply voltage within the range of rated power supply voltage ± 15% |
Standard sensing Object |
Iron: 18 × 18 × 1 mm |
Connection Type |
Cord drawer type |
Insulation Resistance |
Between live parts and case: 50 MΩ or more (at 500 VDC) |
Setting Distance (mm) |
0～4 mm |
Power Supply Voltage |
DC12-24 Lip (pp) 20% or less |
Vibration Resistance |
10-55 Hz, multiple width 1.5 mm, X, Y, Z directions 2h |
Output |
DC 3-Wire NPN |
Operating Voltage Range |
DC10～30 V |
Current Consumption |
17 mA or less |
Cable Material |
Vinyl Chloride |
Residual voltage (V) |
2 V or Less (Load Current 200 mA, Cord Length 2 m) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Import Country |
Direct Import from Japan |
