| Protection Class | IEC Standard IP67 |
| Cable Length | 2 m |

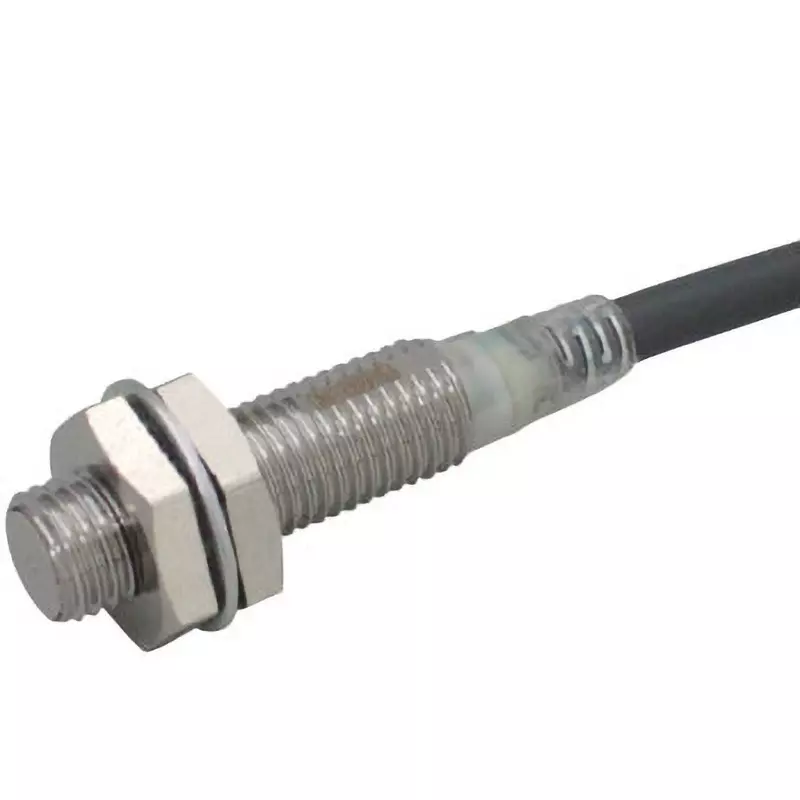

| Type of Product | Proximity Sensor |
| Model No | E2E-X2D1-N 2M |
Protection Class |
IEC Standard IP67 |
Cable Length |
2 m |
Type of Product |
Proximity Sensor |
Model No |
E2E-X2D1-N 2M |
Weight |
Approx. 60 g (Packed) |
Country of Origin |
Japan |
Detection Distance |
2 mm |
Head Shape |
Screw |
Monotaro ID |
6862055 |
Switching Capacity |
3 to 100 mA, Diagnostic Output: 50 mA |
Case Material |
Stainless Steel (SUS303) |
Protection Circuit |
Surge Absorption, Load Short-Circuit Protection (Both Control Output And Diagnostic Output) |
Ambient Humidity |
Operating & Storage: 35 to 95% RH (No Icing or Condensation) |
Included Components |
Instruction Manual |
Influence of Voltage |
Within rated voltage ± 15% range, within rated voltage ± 1% of sensing distance |
Standard sensing Object |
Iron: 8 × 8 × 1 mm |
Connection Type |
Cord drawer type |
Insulation Resistance |
50 MΩ or more (at 500 VDC) between live parts and case |
Setting Distance (mm) |
0～1.6 mm |
Cord |
Standard PVC Cord (Oil Resistant) |
Diagnosis Delay Time |
0.3～1 s |
Power Supply Voltage |
DC12 ~ 24 V Ripple (pp) 10% or less |
Vibration Resistance |
10-55 Hz, multiple width 1.5 mm, X, Y, Z directions 2h |
Residual voltage (V) |
3 V or Less (Load Current 100 mA, Cord Length 2 m, But Only 5 V or Less for M1J-T Type Only) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
