| Protection Class | IEC Standard IP67 (DIN40050-9 Standard IP69K) |
| Cable Length | 2 m |
| Type of Product | Proximity Sensor |

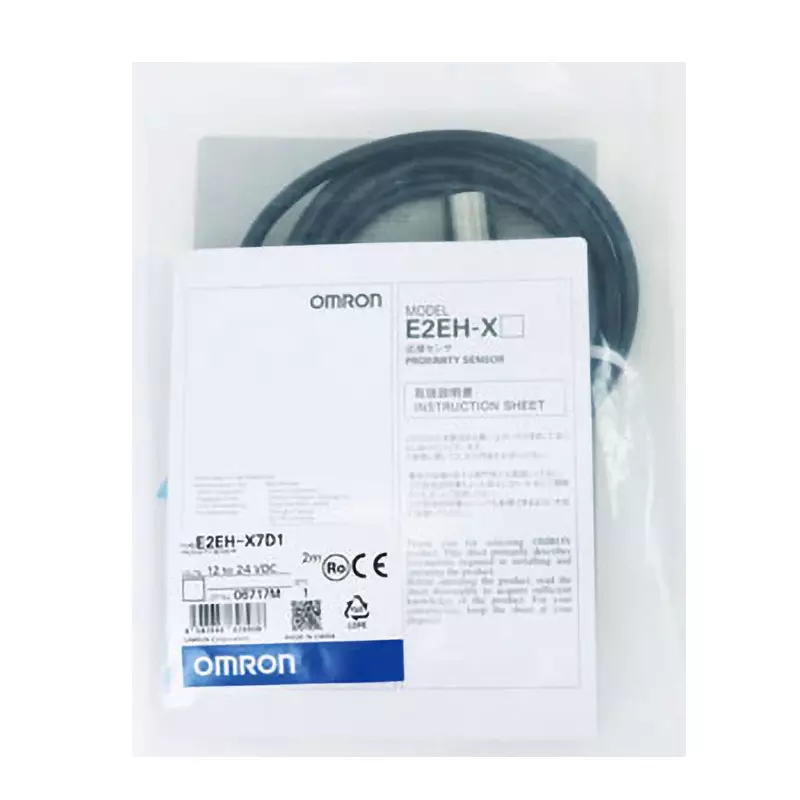

| Model No | E2EH-X7D1 2M |
Protection Class |
IEC Standard IP67 (DIN40050-9 Standard IP69K) |
Cable Length |
2 m |
Type of Product |
Proximity Sensor |
Model No |
E2EH-X7D1 2M |
Weight |
Approx. 145 g (Packed) |
Size |
M18 |
Country of Origin |
CHINA |
Detection Distance |
7 mm |
Head Shape |
Screw |
Monotaro ID |
39044187 |
Switching Capacity |
3 to 100 mA (However, +50 to + 110 ° C, 3 to 50 mA) |
Case Material |
Stainless Steel (SUS316L) |
Protection Circuit |
Load Short-Circuit Protection, Surge Absorption |
Ambient Humidity |
Operating & Storage: 35 to 95% RH Each (No Condensation) |
Included Components |
Instruction Manual |
Influence of Voltage |
Within ± 10% of sensing distance at rated power supply voltage within ± 15% of rated power supply voltage |
Standard sensing Object |
Iron: 21 × 21 × 1 mm |
Connection Type |
Cord drawer type |
Insulation Resistance |
50 MΩ or more (at 500 VDC) between live parts and case |
Setting Distance (mm) |
0～5.6 mm |
Power Supply Voltage |
DC12 ~ 24 V Ripple (pp) 10% or less |
Current Consumption |
less than 10 mA |
Cable Material |
Heat-Resistant PVC |
Residual voltage (V) |
3 V or Less (Load Current 100 mA, Cord Length 2 m) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Import Country |
Direct Import from Japan |
