| Protection Class | IP67 (IEC60529), IP67G (JIS C 0920 Annex 1), Passed Omron Oil-Resistant Component Evaluation Standards (Cutting Oil Type JIS K 2241: 2000 Specified Cutting Fluid, Temperature 35° or Less), ISO 20653 Standard (Former DIN Standard 40050 PART9) ) IP69K |

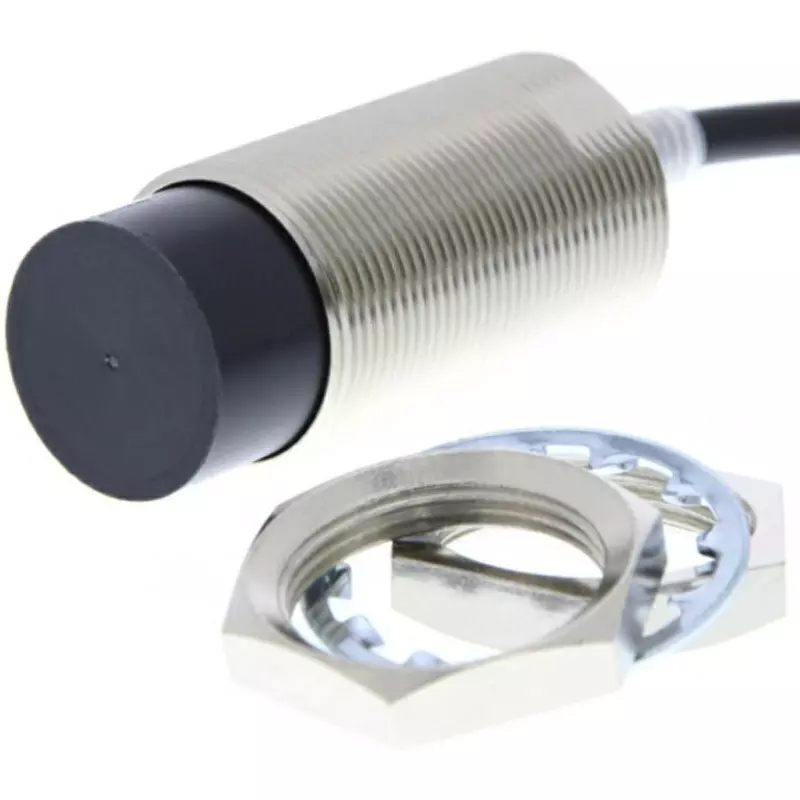

| Type of Product | Proximity Sensor |
| Model No | E2E-X40MD2L30-R 5M |
| Size | M30 |
Protection Class |
IP67 (IEC60529), IP67G (JIS C 0920 Annex 1), Passed Omron Oil-Resistant Component Evaluation Standards (Cutting Oil Type JIS K 2241: 2000 Specified Cutting Fluid, Temperature 35° or Less), ISO 20653 Standard (Former DIN Standard 40050 PART9) ) IP69K |
Type of Product |
Proximity Sensor |
Model No |
E2E-X40MD2L30-R 5M |
Size |
M30 |
Country of Origin |
CHINA |
Type |
Cylindrical Type (With Screw), Long Distance Type |
Detection Distance |
40 mm ±10% |
Monotaro ID |
74075846 |
Case Material |
Brass Nickel Plating |
Included Components |
Instruction Manual, Tightening Nut, Washer With Teeth |
Connection Type |
Cord Drawer Type |
Cord |
Robot (Flexible) PVC Cord |
Power Supply Voltage |
DC 10-30 V (Including 10% Ripple (PP)) |
Output |
2-Wire Type |
Control Output |
Switching capacity: 3 to 100mA, Residual voltage: 3V or Less (Load current 100mA or Less, when cord length is 2m) |
Standard Sensing Object (mm) |
120×120×1 mm |
Detection Distance (mm) |
40 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Body Size |
Long Body |
Cable Length (m) |
5 m |
Import Country |
Direct Import from Japan |
