| Protection Class | IP67 (IEC60529), IP67G (JIS C 0920 Annex 1), Passed Omron Oil-Resistant Component Evaluation Standards (Cutting Oil Type JIS K 2241: 2000 Specified Cutting Fluid, Temperature 35° or Less), ISO 20653 Standard (Former DIN Standard 40050 PART9) ) IP69K |

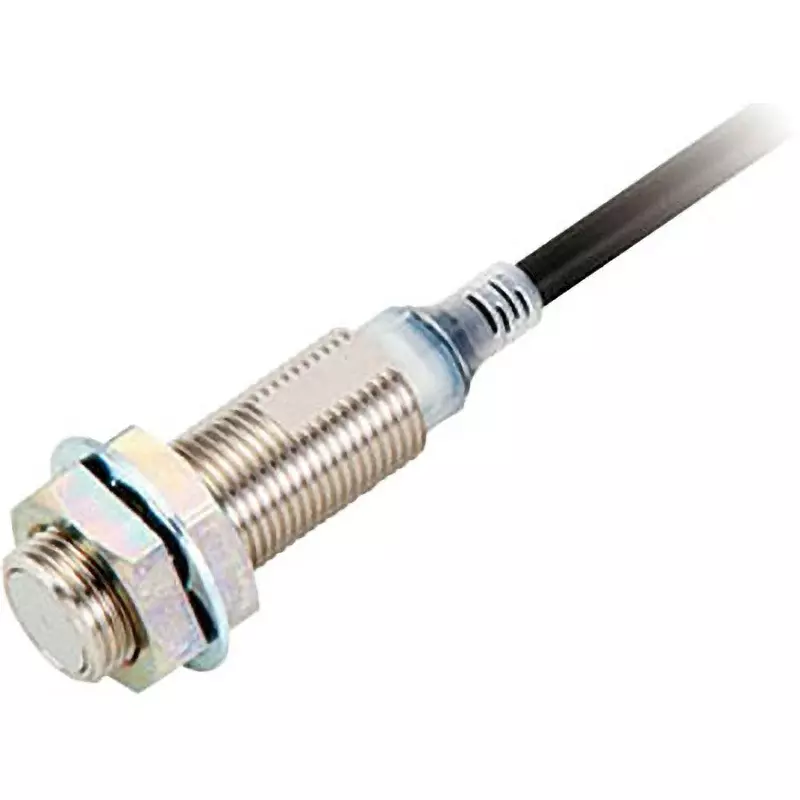

| Type of Product | Proximity Sensor |
| Model No | E2E-X1R5D2-T-N 2M |
| Size | M8 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Protection Class |
IP67 (IEC60529), IP67G (JIS C 0920 Annex 1), Passed Omron Oil-Resistant Component Evaluation Standards (Cutting Oil Type JIS K 2241: 2000 Specified Cutting Fluid, Temperature 35° or Less), ISO 20653 Standard (Former DIN Standard 40050 PART9) ) IP69K |
Type of Product |
Proximity Sensor |
Model No |
E2E-X1R5D2-T-N 2M |
Size |
M8 |
Country of Origin |
CHINA |
Type |
Cylindrical Type (With Screws), Short Distance Type, Model Change Product |
Detection Distance |
1.5 mm ±10% |
Monotaro ID |
74076302 |
Case Material |
Stainless Steel (SUS303) |
Included Components |
Instruction Manual, Tightening Nut, Washer With Teeth |
Connection Type |
Cord Drawer Type |
Cord |
Standard PVC Code |
Power Supply Voltage |
DC 10-30 V (Including 10% Ripple (PP)) |
Output |
2-Wire Type |
Control Output |
witching Capacity: 3 V ~ 100 mA Residual Voltage: 5 V or Less (Load Current: 100 mA or Less, Cord Length: 2 m) |
Standard Sensing Object (mm) |
10×10×1 mm |
Detection Distance (mm) |
1.5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Body Size |
Standard |
Cable Length (m) |
2 m |
Mass (g) |
About 60 g |
