Ships within 19 days
Model No
View
View
View
View
| Protection Class | IEC Standard IP67 |

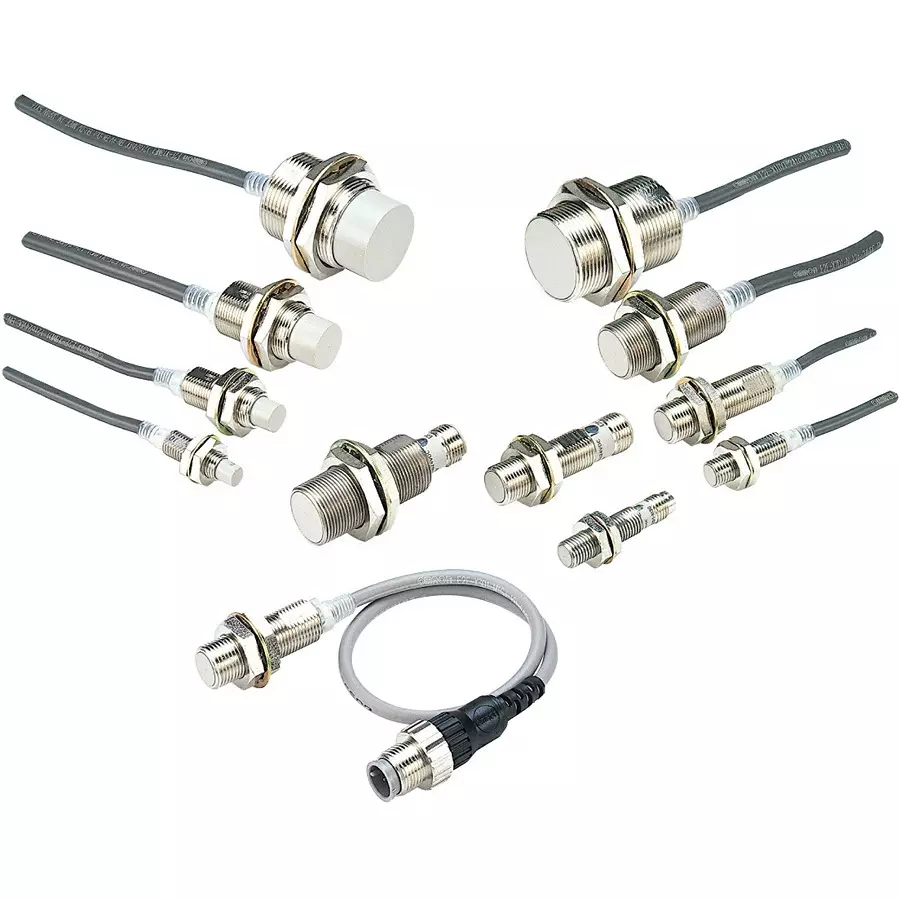

| Type of Product | Standard Type Proximity Sensor |
| Model No | E2E-X10MC118 5M |
| Size | M18 |
Protection Class |
IEC Standard IP67 |
Type of Product |
Standard Type Proximity Sensor |
Model No |
E2E-X10MC118 5M |
Size |
M18 |
Country of Origin |
Japan |
Type |
Cylindrical Type (With Screws) |
Detection Distance |
10 mm ±10% |
Head Shape |
Screw |
Monotaro ID |
63695048 |
Detection Target |
Metal |
Case Material |
Brass Nickel plating |
Protection Circuit |
Load Short Circuit Protection, Output Reverse Connection Protection, Power Supply Reverse Connection Protection, Surge Absorption |
Included Components |
Instruction manual, tightening nut, washer with teeth |
Connection Type |
Cord Drawer Type |
Insulation Resistance |
50 or more (at 500 VDC) between live parts and case |
Cord |
Standard PVC code |
Power Supply Voltage |
DC10-30 (including 10% ripple (pp)) |
Control Output |
Output for mAt: NPN open collector, open / close Capacity: 200 mA or less (DC10-30V Class2) |
Standard Sensing Object (mm) |
Iron 30x30x1 |
Detection Distance (mm) |
10 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Body Size |
Standard |
Cable Length (m) |
5 |
Current Consumption (mA) |
16 or less |
Ambient Humidity (% RH) |
Operating and storage: 35 to 95 (with no condensation) |
Category |
Cylindrical Proximity Sensor |
Import Country |
Direct Import from Japan |
Detection |
Magnetic Metal Presence Detection |
Cord Material |
Oil-Resistant PVC |
