| Series | Nomex |
| Size | - |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | FE128 |
Series |
Nomex |
Size |
- |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
FE128 |
Type of Product |
Chan Coupling |
Coupling Type |
FE Type |
Country of Origin |
GERMANY |
Other Dimensions |

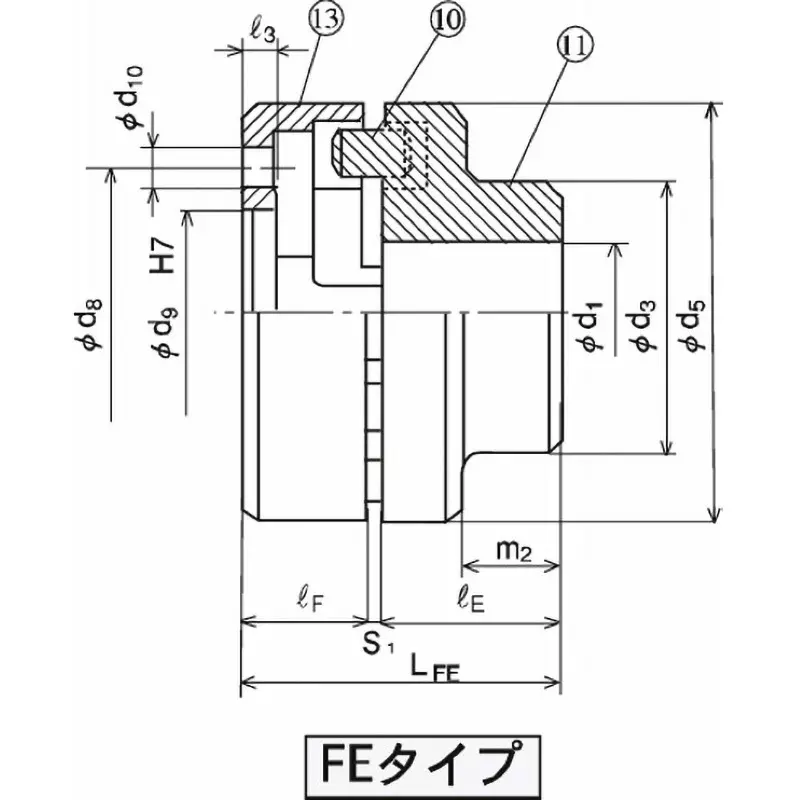

D5: 128 mm, D8: 92 mm, D9: 75 mm, lE: 70 mm |
Maximum Rotation Speed |
5000 RPM |
Overall Length (mm) |
111.5 |
Flywheel |
Part (13) 0.183, Part (11) 0.221 GD² Nm² (kg.m²) |
Monotaro ID |
47931563 |
Dimension M2 (mm) |
45 |
Dimension S1 (mm) |
3.5±1 |
Outer Diameter (Φmm) |
128 |
Regular Torque |
262 Nm |
Shaft Hole Diameter d1 (Φmm) |
18～55 |
Mass (Kg) |
Parts (13): 1.49, Overall: 5.39 |
Maximum Torque (Nm) |
471 |
No. of Teeth |
6 |
Number of Holes |
6 |
Dimension L3 (mm) |
10 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
