| Series | Nomex |
| Size | - |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | G82 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
- |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
G82 |

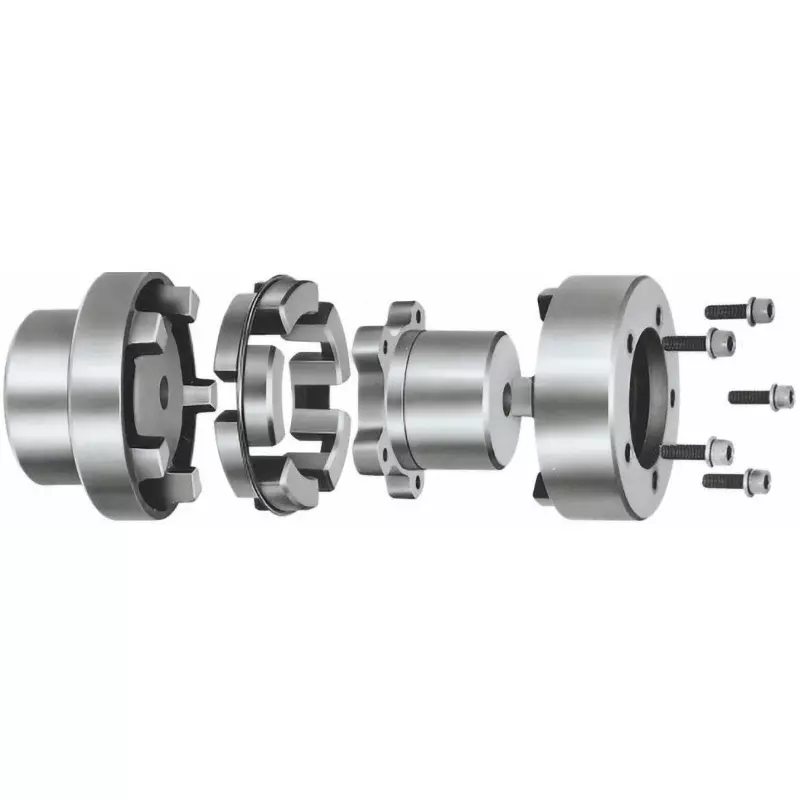

Type of Product |
Chan Coupling |
Coupling Type |
G Type |
Country of Origin |
GERMANY |

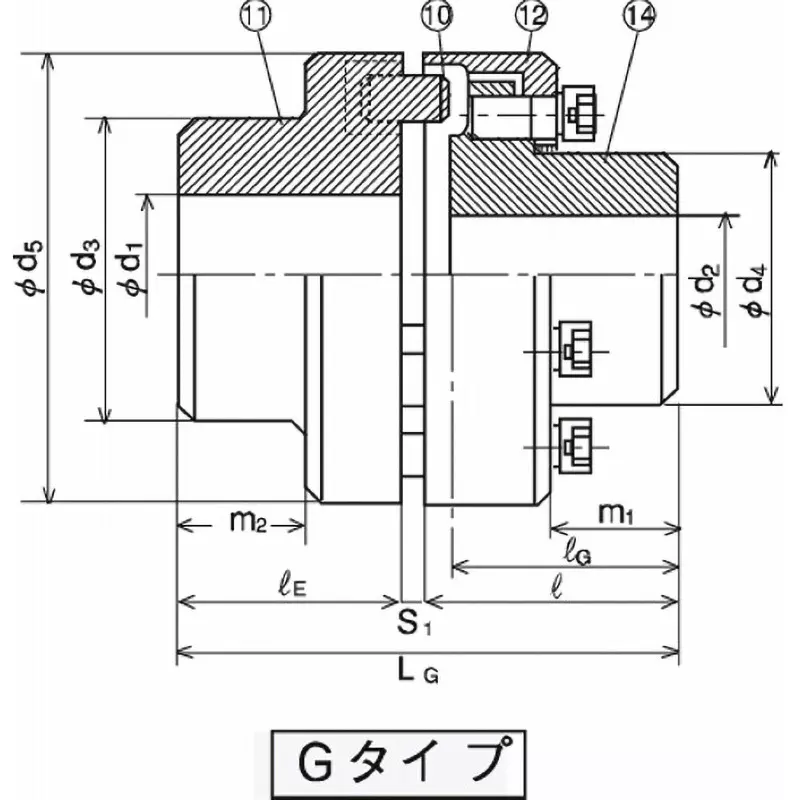

Other Dimensions |
D5: 82 mm, LG: 91.5 mm, m1: 20 mm |
Maximum Rotation Speed |
8000 RPM |
Overall Length (mm) |
91.5 |
Flywheel |
Parts (11) 0.023, Parts (12 + 14) 0.03 GD² Nm² (kg.m²) |
Monotaro ID |
47931816 |
Dimension M2 (mm) |
24 |
Dimension d4 (mm) |
44.5 |
Dimension S1 (mm) |
3±1 |
Outer Diameter (Φmm) |
82 |
Regular Torque |
49 Nm |
Bolt Diameter |
M6 |
Shaft Hole Diameter d1 (Φmm) |
10～32 |
Mass (Kg) |
Parts (11): 0.87, Overall: 1.8 |
Maximum Torque (Nm) |
88.3 |
No. of Teeth |
4 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
