| Series | Nomex |
| Size | 67-106 |
| Material | (Flange) Cast Iron (Elastic Body) Joint Rubber |
| Model No | LE67-106 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
67-106 |
Material |
(Flange) Cast Iron (Elastic Body) Joint Rubber |
Model No |
LE67-106 |
Type of Product |
Chan Coupling |

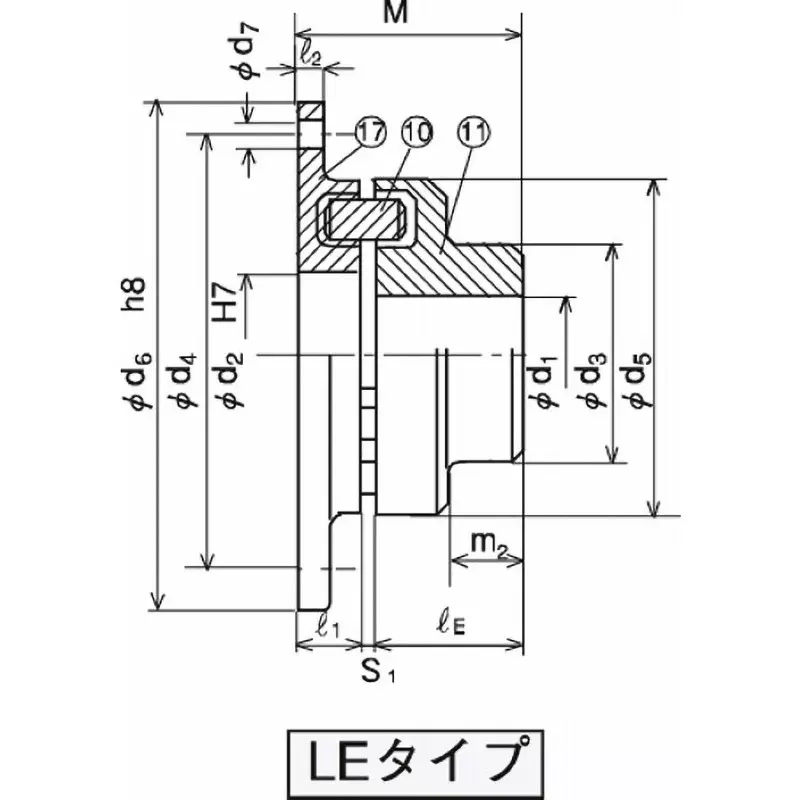

Coupling Type |
LE Type |
Country of Origin |
GERMANY |
Other Dimensions |
D2: 30 mm, D5: 67 mm, lE: 30 mm |
Maximum Rotation Speed |
10000 RPM |
Overall Length (mm) |
47.5 |
Flywheel |
Parts (11) 0.009, Parts (17) 0.03 GD² Nm² (kg.m²) |
Monotaro ID |
47936576 |
Dimension M2 (mm) |
15 |
Dimension d4 (mm) |
94 |
Dimension S1 (mm) |
2.5±0.5 |
Regular Torque |
21.6 Nm |
Shaft Hole Diameter d1 (Φmm) |
9～28 |
Mass (Kg) |
Parts (17): 0.5, Overall: 0.95 |
Maximum Torque (Nm) |
39.2 |
Dimension L1 |
15 mm |
Dimension L2 |
8 mm |
Number of Holes |
6 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
