| Series | Nomex |
| Size | - |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | FG128 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
- |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
FG128 |
Type of Product |
Chan Coupling |
Coupling Type |

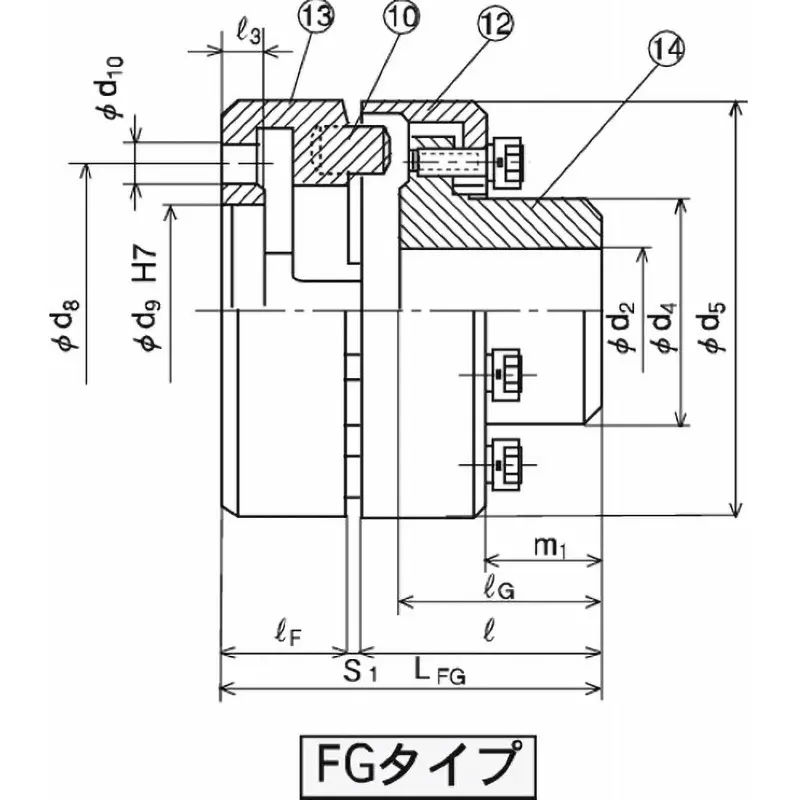

FG Type |
Country of Origin |
GERMANY |
Other Dimensions |
D5: 128 mm, LG: 68 mm, m1: 42 mm |
Maximum Rotation Speed |
5000 RPM |
Overall Length (mm) |
121.5 |
Flywheel |
Parts (13) 0.183, Parts (12 + 14) 0.261 GD² Nm² (kg.m²) |
Monotaro ID |
47931624 |
Dimension d4 (mm) |
74.5 |
Dimension S1 (mm) |
3.5±1 |
Outer Diameter (Φmm) |
128 |
Regular Torque |
262 Nm |
Bolt Diameter |
M8 |
Shaft Hole Diameter d1 (Φmm) |
18～48 |
Mass (Kg) |
Parts (13): 1.49, Overall: 5.49 |
Maximum Torque (Nm) |
471 |
No. of Teeth |
6 |
Number of Holes |
6 |
Dimension L3 (mm) |
10 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
