| Series | Nomex |
| Size | - |
| Material | Synthetic Rubber |
| Model No | 67 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
- |
Material |
Synthetic Rubber |
Model No |
67 |

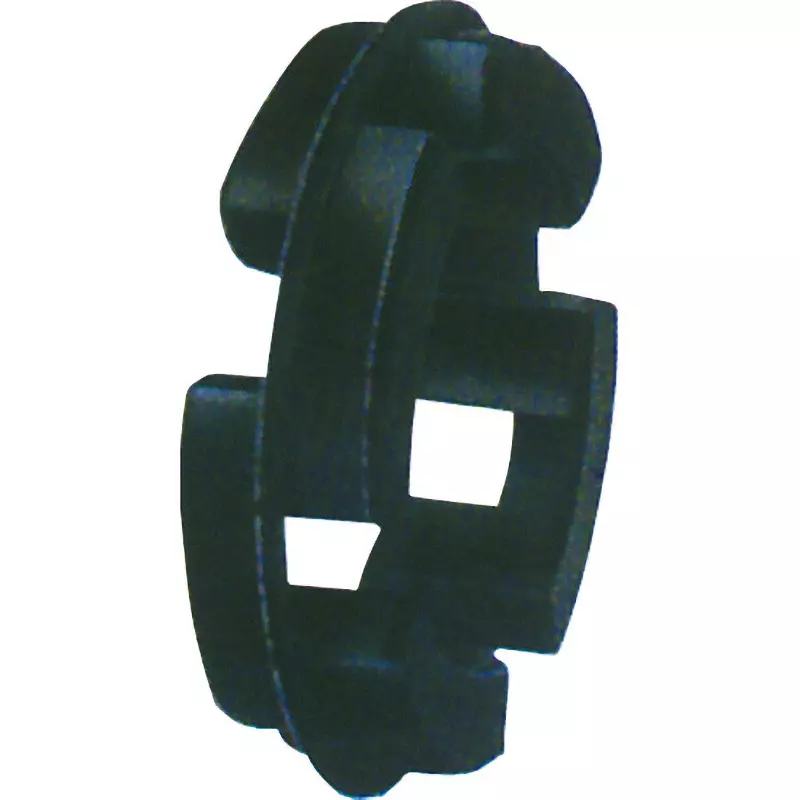

Type of Product |
Chan Coupling |
Coupling Type |
Elastic Body |
Country of Origin |
GERMANY |
Monotaro ID |
47856277 |

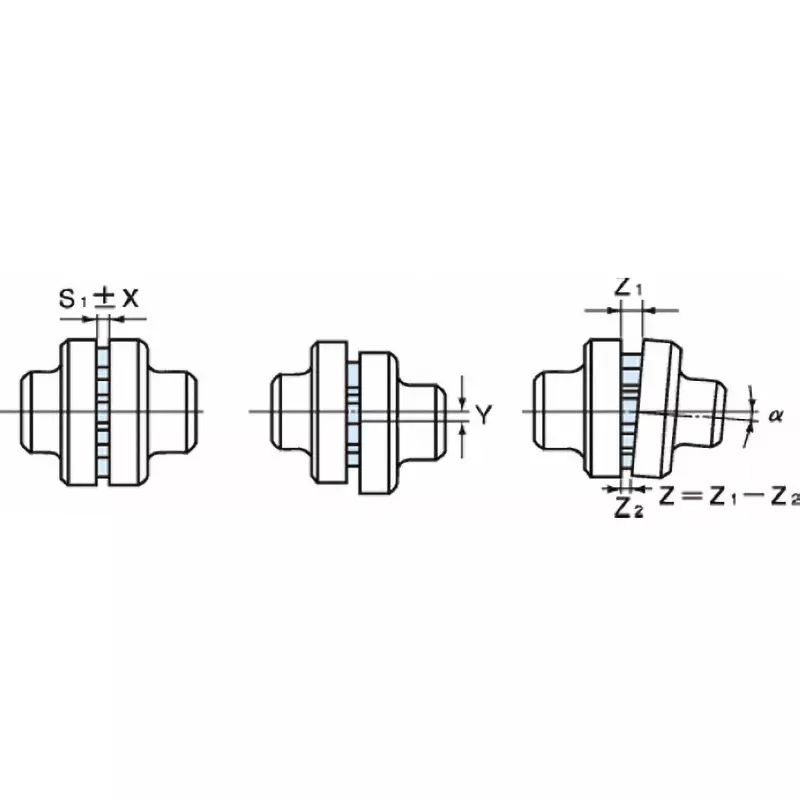

Maximum Acceptable centering deviation Y (mm) |
0.5 |
Compatible coupling size |
67 |
Maximum Acceptable centering distance Flange spacing X (mm) |
±0.5 |
Maximum Acceptable centering deviation angle α (min) |
30 |
Elastic Body replacement standard backlash amount (mm) |
(Unidirectional rotation) 2.5, (Forward / reverse rotation) 2 |
Maximum Acceptable centering deviation angle Z (mm) |
0.6 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
