| Series | Nomex |
| Size | - |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | G148 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
- |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
G148 |
Type of Product |
Chan Coupling |
Coupling Type |
G Type |
Country of Origin |
GERMANY |

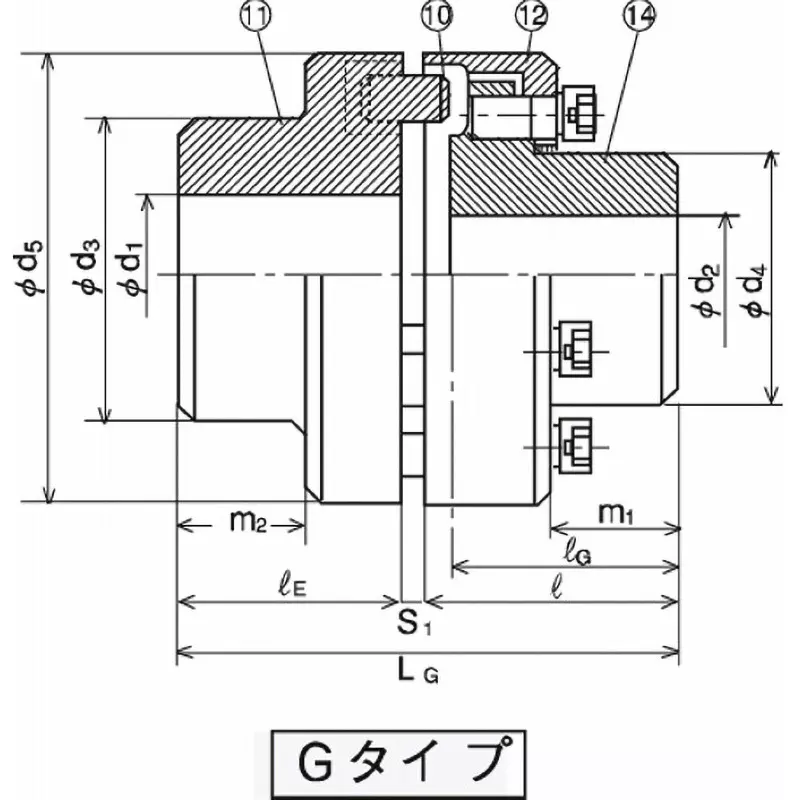

Other Dimensions |
D5: 148 mm, LG: 175.5 mm, m1: 47 mm |
Maximum Rotation Speed |
4500 RPM |
Overall Length (mm) |
175.5 |
Flywheel |
Part (11) 0.372, Part (12 + 14) 0.535 GD² Nm² (kg.m²) |
Monotaro ID |
47931712 |
Dimension M2 (mm) |
52 |
Dimension d4 (mm) |
92.5 |
Dimension S1 (mm) |
3.5±1 |
Outer Diameter (Φmm) |
148 |
Regular Torque |
409 Nm |
Bolt Diameter |
M10 |
Shaft Hole Diameter d1 (Φmm) |
22～65 |
Mass (Kg) |
Parts (11): 6.1, Overall: 12.3 |
Maximum Torque (Nm) |
735 |
No. of Teeth |
7 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
