| Series | Nomex |
| Size | - |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | G112 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
- |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
G112 |
Type of Product |
Chan Coupling |
Coupling Type |
G Type |
Country of Origin |
GERMANY |
Other Dimensions |

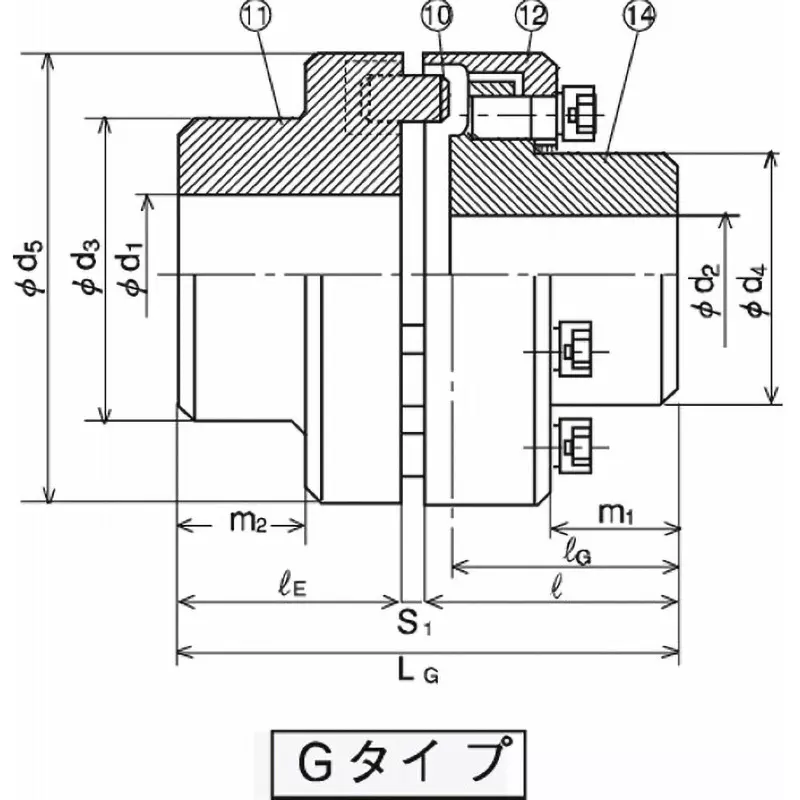

D5: 112 mm, LG: 133 mm, m1: 32.5 mm |
Maximum Rotation Speed |
6000 RPM |
Overall Length (mm) |
133 |
Flywheel |
Parts (11) 0.101, Parts (12 + 14) 0.128 GD² Nm² (kg.m²) |
Monotaro ID |
47931676 |
Dimension M2 (mm) |
38 |
Dimension d4 (mm) |
64.5 |
Dimension S1 (mm) |
3.5±1 |
Outer Diameter (Φmm) |
112 |
Regular Torque |
164 Nm |
Bolt Diameter |
M8 |
Shaft Hole Diameter d1 (Φmm) |
14～48 |
Mass (Kg) |
Parts (11): 2.45, Overall: 5 |
Maximum Torque (Nm) |
294 |
No. of Teeth |
6 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
