| Series | Nomex |
| Size | 148-200 |
| Material | (Flange) Cast Iron (Elastic Body) Joint Rubber |
| Model No | LE148-200 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
148-200 |
Material |
(Flange) Cast Iron (Elastic Body) Joint Rubber |
Model No |
LE148-200 |
Type of Product |
Chan Coupling |
Coupling Type |

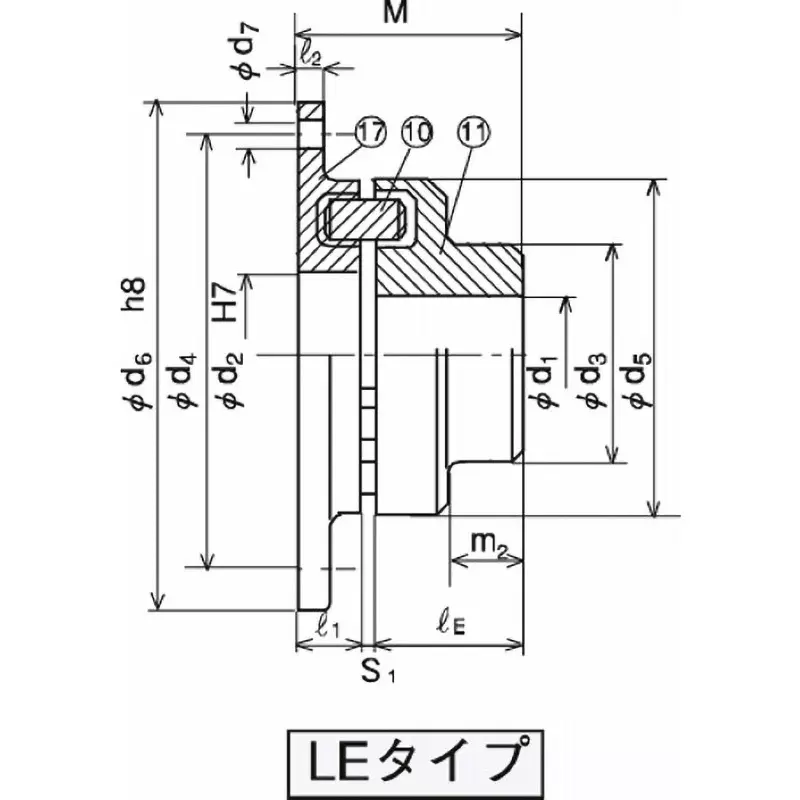

LE Type |
Country of Origin |
GERMANY |
Other Dimensions |
D2: 90 mm, D5: 148 mm, lE: 80 mm |
Maximum Rotation Speed |
4500 RPM |
Overall Length (mm) |
111.5 |
Flywheel |
Part (11) 0.372, Part (17) 0.61 GD² Nm² (kg.m²) |
Monotaro ID |
47936567 |
Dimension M2 (mm) |
52 |
Dimension d4 (mm) |
180 |
Dimension S1 (mm) |
3.5±1 |
Regular Torque |
409 Nm |
Shaft Hole Diameter d1 (Φmm) |
22～65 |
Mass (Kg) |
Parts (17): 3, Overall: 8.7 |
Maximum Torque (Nm) |
735 |
Dimension L1 |
28 mm |
Dimension L2 |
13 mm |
Number of Holes |
7 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
