| Series | Nomex |
| Size | - |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | FE97 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
- |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
FE97 |
Type of Product |
Chan Coupling |
Coupling Type |

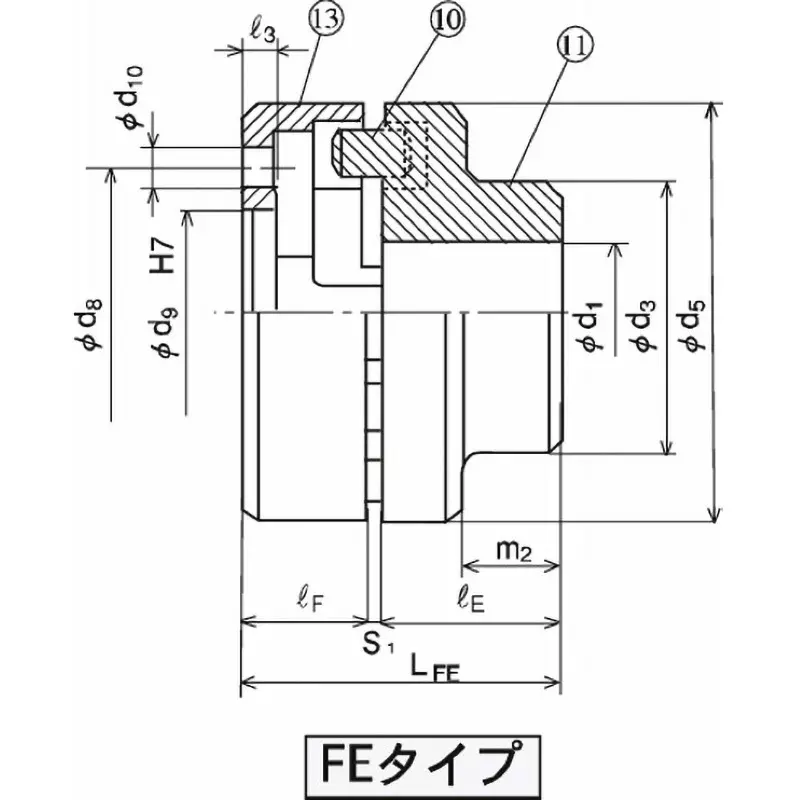

FE Type |
Country of Origin |
GERMANY |
Other Dimensions |
D5: 97 mm, D8: 69 mm, D9: 55 mm, lE: 50 mm |
Maximum Rotation Speed |
7000 RPM |
Overall Length (mm) |
82.5 |
Flywheel |
Part (13) 0.045, Part (11) 0.053 GD² Nm² (kg.m²) |
Monotaro ID |
47931606 |
Dimension M2 (mm) |
30 |
Dimension S1 (mm) |
3±1 |
Outer Diameter (Φmm) |
97 |
Regular Torque |
103 Nm |
Shaft Hole Diameter d1 (Φmm) |
12～42 |
Mass (Kg) |
Parts (13): 0.67, Overall: 2.37 |
Maximum Torque (Nm) |
186 |
No. of Teeth |
5 |
Number of Holes |
5 |
Dimension L3 (mm) |
8 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
