| Series | Nomex |
| Size | - |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | G128 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
- |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
G128 |
Type of Product |
Chan Coupling |
Coupling Type |
G Type |
Country of Origin |
GERMANY |

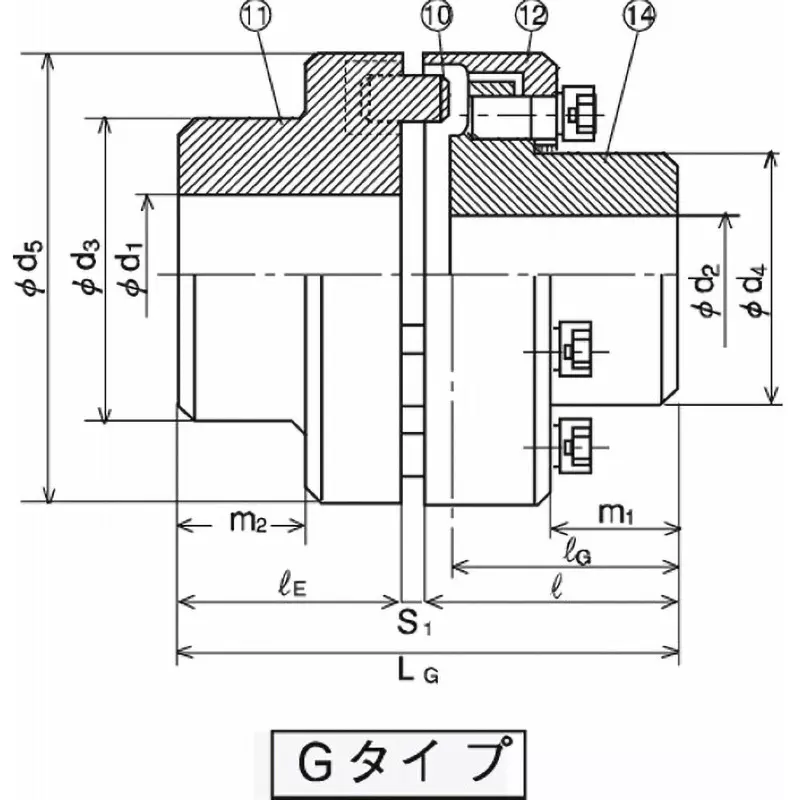

Other Dimensions |
D5: 128 mm, LG: 153.5 mm, m1: 42 mm |
Maximum Rotation Speed |
5000 RPM |
Overall Length (mm) |
153.5 |
Flywheel |
Parts (11) 0.221, Parts (12 + 14) 0.261 GD² Nm² (kg.m²) |
Monotaro ID |
47931694 |
Dimension M2 (mm) |
45 |
Dimension d4 (mm) |
74.5 |
Dimension S1 (mm) |
3.5±1 |
Outer Diameter (Φmm) |
128 |
Regular Torque |
262 Nm |
Bolt Diameter |
M8 |
Shaft Hole Diameter d1 (Φmm) |
18～55 |
Mass (Kg) |
Parts (11): 3.9, Overall: 7.9 |
Maximum Torque (Nm) |
471 |
No. of Teeth |
6 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
