| Series | Nomex |
| Size | 112-158 |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | LG112-158 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
112-158 |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
LG112-158 |
Type of Product |

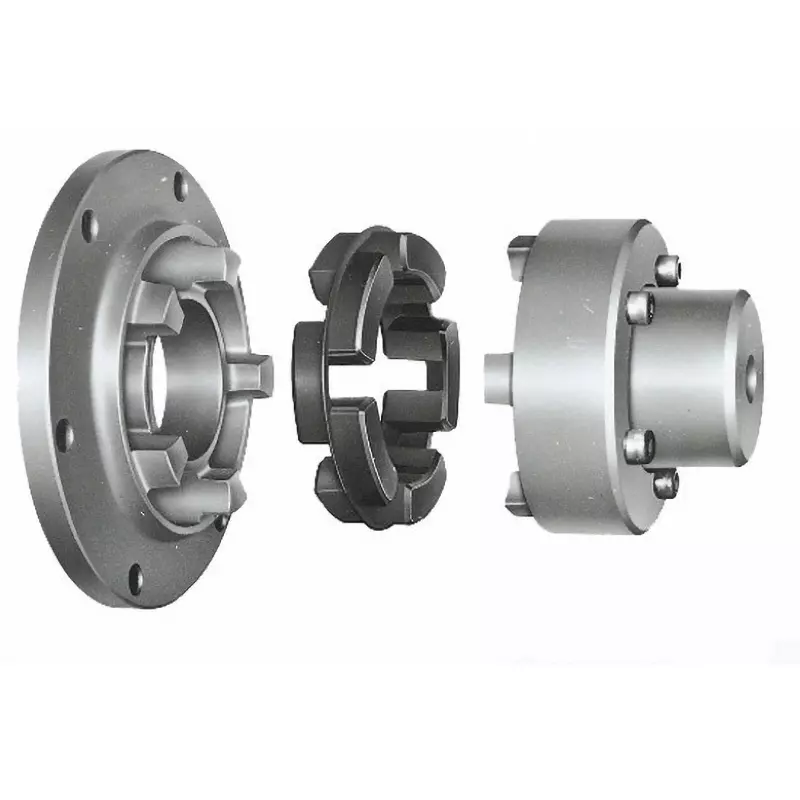

Chan Coupling |
Coupling Type |
LG Type |
Country of Origin |
GERMANY |

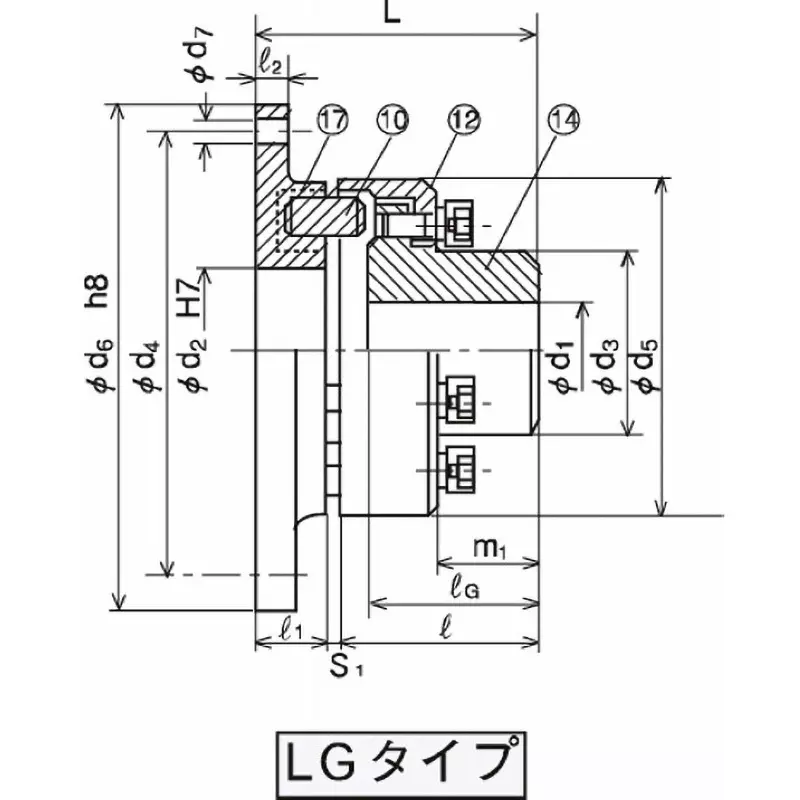

Other Dimensions |
D2: 60 mm, D5: 112 mm |
Maximum Rotation Speed |
6000 RPM |
Overall Length (mm) |
95 |
Flywheel |
Parts (17) 0.196, Parts (12 + 14) 0.128 GD² Nm² (kg.m²) |
Monotaro ID |
47936603 |
Dimension d4 (mm) |
142 |
Dimension S1 (mm) |
3.5±1 |
Regular Torque |
164 Nm |
Bolt Diameter |
M8 |
Mass (Kg) |
Parts (17): 1.46, Overall: 4 |
Maximum Torque (Nm) |
294 |
No. of Teeth |
6 |
Dimension L1 |
22 mm |
Dimension L2 |
10 mm |
Number of Holes |
6 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
