| Series | Nomex |
| Size | 128-180 |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | LG128-180 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
128-180 |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
LG128-180 |
Type of Product |
Chan Coupling |
Coupling Type |
LG Type |
Country of Origin |
GERMANY |

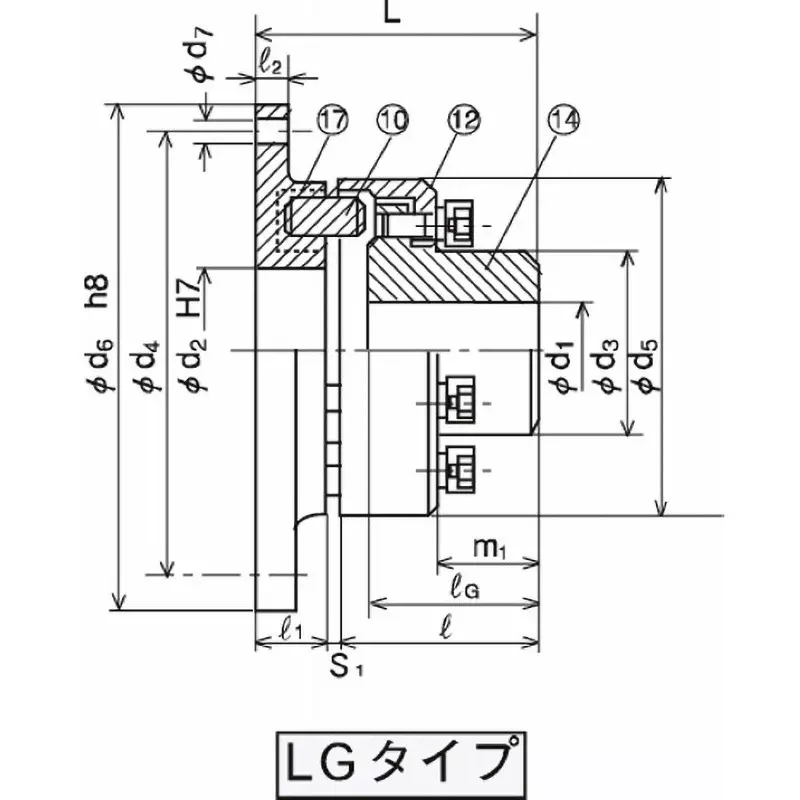

Other Dimensions |
D2: 70 mm, D5: 128 mm |
Maximum Rotation Speed |
5000 RPM |
Overall Length (mm) |
108.5 |
Flywheel |
Part (17) 0.424, Part (12 + 14) 0.261 GD² Nm² (kg.m²) |
Monotaro ID |
47936612 |
Dimension d4 (mm) |
160 |
Dimension S1 (mm) |
3.5±1 |
Regular Torque |
262 Nm |
Bolt Diameter |
M8 |
Mass (Kg) |
Parts (17): 2.44, Overall: 6.44 |
Maximum Torque (Nm) |
471 |
No. of Teeth |
6 |
Dimension L1 |
25 mm |
Dimension L2 |
13 mm |
Number of Holes |
6 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
