| Series | Nomex |
| Size | - |
| Material | (Flange) Cast Iron (Elastic Body) Synthetic Rubber |
| Model No | FE82 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
- |
Material |
(Flange) Cast Iron (Elastic Body) Synthetic Rubber |
Model No |
FE82 |
Type of Product |
Chan Coupling |
Coupling Type |
FE Type |
Country of Origin |
GERMANY |

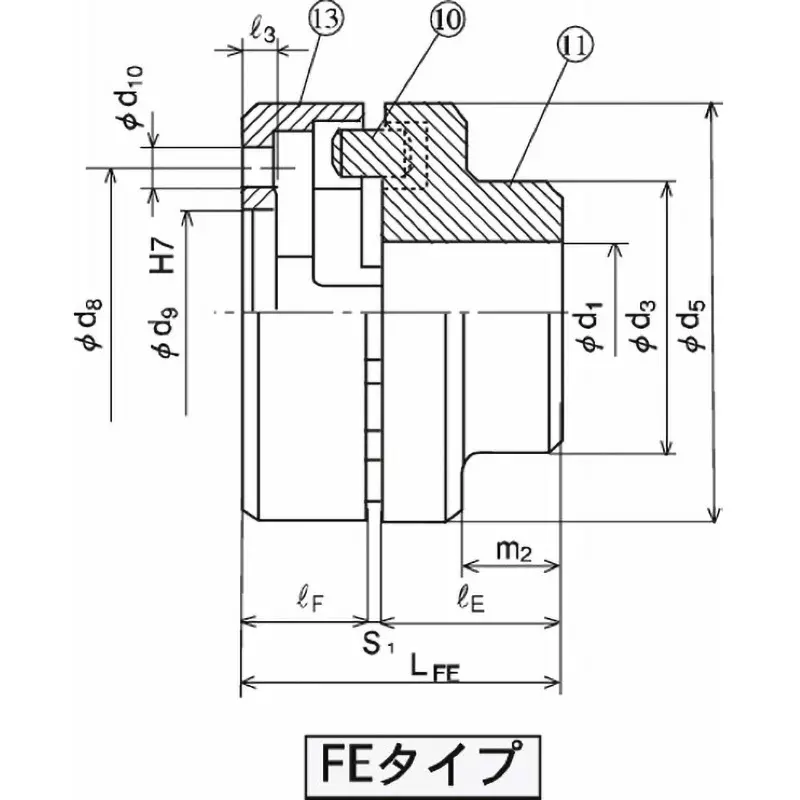

Other Dimensions |
D5: 82 mm, D8: 62 mm, D9: 45 mm, lE: 40 mm |
Maximum Rotation Speed |
8000 RPM |
Overall Length (mm) |
71.5 |
Flywheel |
Parts (13) 0.025, Parts (11) 0.023 GD² Nm² (kg.m²) |
Monotaro ID |
47931597 |
Dimension M2 (mm) |
24 |
Dimension S1 (mm) |
3±1 |
Outer Diameter (Φmm) |
82 |
Regular Torque |
49 Nm |
Shaft Hole Diameter d1 (Φmm) |
10～32 |
Mass (Kg) |
Parts (13): 0.54, Overall: 1.41 |
Maximum Torque (Nm) |
88.3 |
No. of Teeth |
4 |
Number of Holes |
4 |
Dimension L3 (mm) |
9.5 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
