| Series | Nomex |
| Size | 97-144 |
| Material | (Flange) Cast Iron (Elastic Body) Joint Rubber |
| Model No | LE97-144 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Series |
Nomex |
Size |
97-144 |
Material |
(Flange) Cast Iron (Elastic Body) Joint Rubber |
Model No |
LE97-144 |
Type of Product |
Chan Coupling |
Coupling Type |
LE Type |
Country of Origin |
GERMANY |

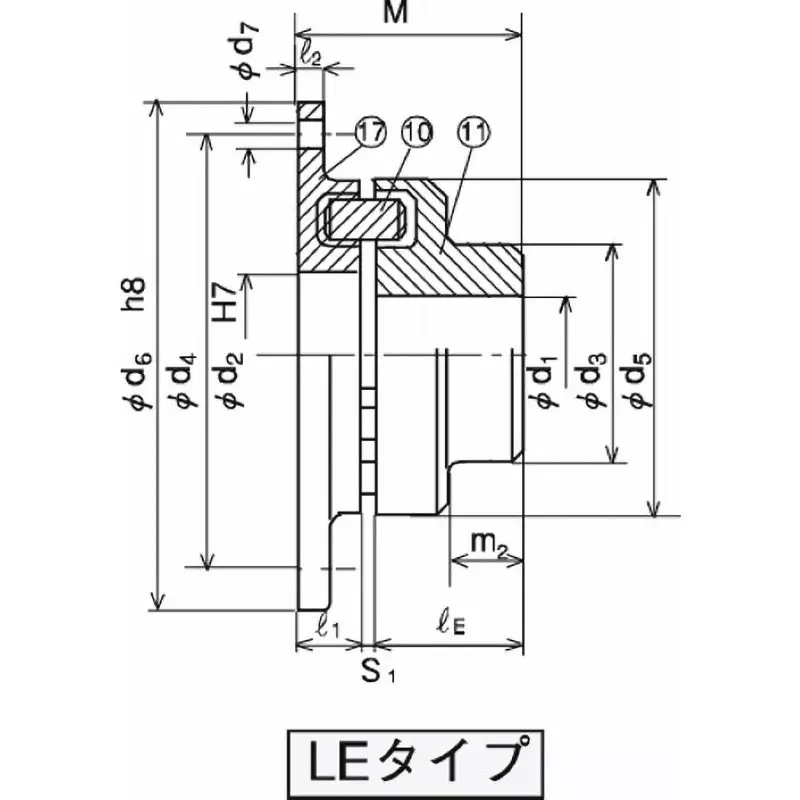

Other Dimensions |
D2: 50 mm, D5: 97 mm, lE: 50 mm |
Maximum Rotation Speed |
7000 RPM |
Overall Length (mm) |
73 |
Flywheel |
Part (11) 0.053, Part (17) 0.131 GD² Nm² (kg.m²) |
Monotaro ID |
47936594 |
Dimension M2 (mm) |
30 |
Dimension d4 (mm) |
128 |
Dimension S1 (mm) |
3±1 |
Regular Torque |
103 Nm |
Shaft Hole Diameter d1 (Φmm) |
12～42 |
Mass (Kg) |
Parts (17): 1.29, whole: 2.89 |
Maximum Torque (Nm) |
186 |
Dimension L1 |
20 mm |
Dimension L2 |
10 mm |
Number of Holes |
6 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
